ZoneFirst ZDS-30X10 Damper

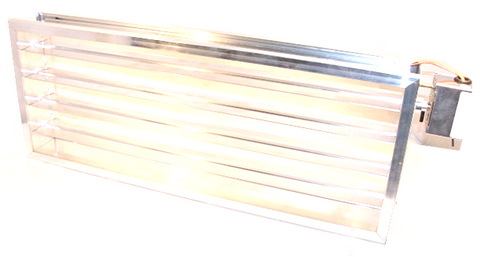

The ZoneFirst ZDS-30X10 is a heavy-duty rectangular zone damper designed for professional HVAC airflow management. Built with a sturdy extruded aluminum frame and parallel blades, this side-mount damper is engineered for insertion into the 10-inch side of a 30" x 10" duct. It features a high-torque 24VAC synchronous motor (Model MSS) that operates in a power closed/spring return open configuration, ensuring a fail-safe open position during power loss to maintain critical airflow. The parallel blade design, equipped with self-lubricating bushings, provides quiet, low-friction operation even at static pressures up to 1.0" W.C. Contractors can easily perform field conversion to power open/spring return closed if system requirements change. The motor assembly includes a minimum position adjustment screw, allowing a controlled bypass of air to reduce the need for separate bypass dampers and help balance static pressure across the zoning system.

• Fail-Safe Operation: The spring return open logic ensures the zone stays open during power failures, preventing unit high-limit trips.
• Streamlined Installation: Designed as a side-mount damper requiring only a 4-inch slot for insertion, significantly reducing labor time on 30x10 ductwork.
• Quiet Performance: Features a patented air brake in the MSS motor to eliminate the "clunk" typically associated with spring-return actuators.
• Robust Construction: The extruded aluminum frame resists corrosion and remains lightweight for easier overhead handling during HVAC zoning installs.
• Easy Maintenance: The 24V synchronous motor can be swapped in under a minute by loosening a single setscrew without dismantling the entire damper assembly.

• What is the actual size of the unit? All ZD series dampers are manufactured 1/4" undersized to ensure a proper fit without binding in standard rectangular ductwork.
• Can the motor be moved to another side? No, on the ZDS-30X10, the motor is factory-mounted on the 10-inch height dimension. For bottom mounting, a ZDB series would be required.
• Is this compatible with older control panels? Yes, this 2-wire damper is compatible with most 24V zone control panels. When replacing older 3-wire or 5-wire models, check your panel’s wiring terminal requirements.
