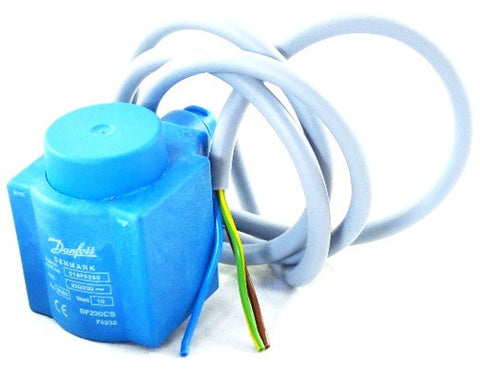

Danfoss 018F6282 Coil

The Danfoss 018F6282 is a high-performance solenoid valve coil designed for use with the Danfoss EVR series, as well as EVRH, EVRP, and EVRC valves. This specific model, often categorized as a Danfoss Type BF coil, operates on a 220/230V 50/60Hz dual-frequency power supply. It utilizes a clip-on fastening system, ensuring a secure fit and rapid installation onto the valve armature without the need for additional tools. Built to handle demanding refrigeration and air conditioning environments, this replacement solenoid coil features Class H insulation, allowing it to withstand high ambient temperatures and peak thermal loads. The IP67 protection rating ensures the internal windings remain protected against moisture ingress, a critical requirement for cold-room and outdoor condensing unit applications. When troubleshooting system failures, replacing a burnt-out or shorted coil with this OEM Danfoss 018F6282 restores precise magnetic actuation for consistent refrigerant flow control.

• Dual-Frequency Compatibility: Optimized for both 50Hz and 60Hz cycles, providing versatility for various electrical grids and equipment configurations.
• Fast Installation: The snap-on design reduces downtime during field service by locking directly onto the valve actuator.
• Enhanced Durability: Robust thermoset plastic housing provides superior mechanical protection and heat dissipation for extended life.
• Wide Application Range: Compatible with a broad range of Danfoss solenoid valves used in commercial refrigeration and liquid line applications.

Does this coil fit EVR 2 through EVR 40 valves?
Yes, the BF type 018F6282 is compatible with the standard EVR range (sizes 2-40), provided the valve actuator is designed for the clip-on coil system.

Can I use this 230V coil on a 208V system?
Standard tolerance for this coil typically allows for operation within +/- 10% of the rated voltage, though performance should be verified against the specific transformer output to ensure reliable magnetic pull-in.

Does the coil include the electrical junction box?
This specific model is a junction box version, which simplifies wiring by providing a dedicated terminal housing for the lead connections.
