Danfoss 034L0029 Pressure Regulator

Danfoss 034L0029 Pressure Regulator

  • $124.20


5/8"ODF KVP15 EvapPressure Reg

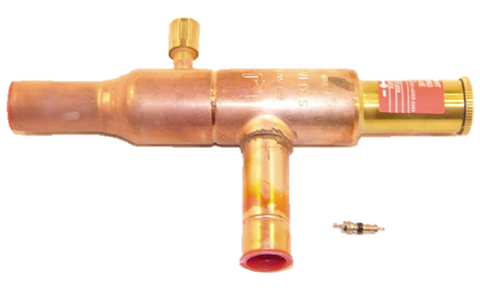

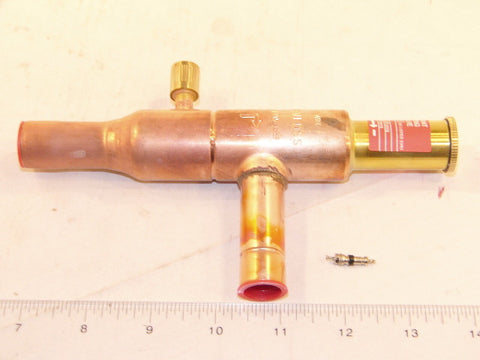

Danfoss 034L0029 KVP15 Evaporator Pressure Regulator – 5/8" ODF | High-Performance Refrigeration Valve

Ensure optimal performance and reliability in your refrigeration system with the Danfoss 034L0029 KVP15 Evaporator Pressure Regulator. Designed for use in air conditioning and refrigeration systems, this KVP15 pressure regulator offers precise control of evaporator pressure for improved efficiency.

Key Features:

  • Brand: Danfoss

  • Model: 034L0029

  • Type: KVP15 Evaporator Pressure Regulator

  • Inlet/Outlet Size: 5/8" ODF (16 mm)

  • Cv Value: 2.9 gal/min

  • Max. Working Pressure: 260 psig (18 bar)

  • Factory Setting: 2 bar (29 psig)

  • Flow Direction: Engraved 1-way arrow for clear guidance

  • Lubricants Compatibility: Suitable for oil-free applications

  • Medium Temperature Range: -45°C to 130°C (-49°F to 266°F)

  • Approved Refrigerants: Compatible with various refrigerants including R134a, R22, R407C, R404A, and more

Specifications:

  • Inlet/Outlet Connection Type: Solder, ODF

  • Test Pressure: 286 psig (19.8 bar)

  • Regulation Range: 0-5.5 bar (0-80 psig)

  • Rated Capacity:

    • R134a: 2.8 kW (0.9 TR)

    • R22: 4 kW (1.3 TR)

    • R404A/R507: 3.6 kW (1.2 TR)

    • R407C: 3.7 kW (1.2 TR)

  • Serviceable: KV valves spare parts

Product Benefits:

  • Reliable Performance: Designed for consistent and accurate pressure regulation in refrigeration and HVAC systems

  • Durable Construction: Built to withstand demanding applications with high reliability

  • Wide Refrigerant Compatibility: Works with a wide range of refrigerants, including R134a, R22, R407C, and more

  • Easy Installation: Solder connection and clear flow direction indicator for simple installation

  • Compliance: Meets EU RoHS and China RoHS standards, ensuring environmental safety

Application:
The Danfoss 034L0029 KVP15 is perfect for use in commercial refrigeration, air conditioning systems, and heat pump systems that require precise evaporator pressure control.

Certifications and Approvals:

  • UL Approved: Safe for use with approved refrigerants such as R134a, R22, R407C, and more

  • RoHS Compliance: Fully compliant with European and Chinese RoHS regulations

Important Warning:
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and reproductive harm. For more information, visit www.p65warnings.ca.gov.
