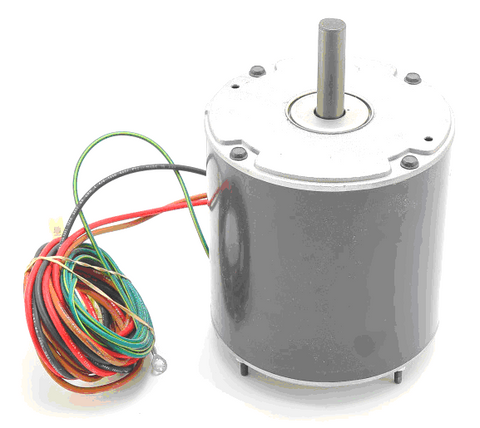

Heil Quaker ICP 1065751 Motor

The Heil Quaker ICP 1065751 Motor is a heavy-duty, 3/4 HP OEM replacement condenser fan motor designed for International Comfort Products (ICP) and Heil HVAC equipment. Built to maintain factory specifications, this 1140 RPM condenser motor operates at 208-230V and is engineered for single-phase applications. As a Permanent Split Capacitor (PSC) motor, it delivers stable performance under high-static conditions, utilizing a 48 NEMA frame and sleeve bearings for quiet, reliable operation in residential and light commercial condensing units. This single-speed unit features a counter-clockwise (CCW) rotation and is often found in performance-matched ICP models like the PGA036F1HA. For service technicians, the ICP 1065751 replacement motor ensures compatibility without the need for complex mounting modifications, using a standard band or thru-bolt configuration. When swapping out a 1065751 motor, professionals recommend inspecting the run capacitor (typical requirement 10 MFD/440V) and fan blade balance to protect the 2.6 Amp draw and prevent premature bearing wear.

• Exact OEM Compatibility: Verified fit for Heil, Tempstar, and Comfortmaker units, ensuring correct 1140 RPM fan curves and airflow.
• Efficient Mechanical Power: 3/4 HP rating provides the high-torque output necessary for demanding outdoor condenser environments.
• Technical Specifications: 208-230Vac, 1-Phase, 2.6 Amps, and CCW rotation for precise system matching.
• Standardized Mounting: 48 frame size with band/thru-bolt mount allows for straightforward installation in existing brackets.
• Industrial Build: Features sleeve bearings and a permanent split capacitor design for sustained operation during peak seasonal loads.

Is the ICP 1065751 motor reversible?
No, this specific motor is fixed for Counter-Clockwise (CCW) rotation. Always verify the orientation of your fan blade before installation to ensure proper upward heat rejection from the condenser coil.

What capacitor should I use with this 3/4 HP motor?
Technicians typically pair this motor with a 10 MFD / 440V run capacitor. It is standard practice to replace the capacitor during any motor swap to ensure the start-winding and operational efficiency meet the 2.6 Amp nameplate data.

Will this motor fit other ICP brands like Tempstar or Comfortmaker?
Yes, part number 1065751 is a cross-functional component used across the International Comfort Products family, including Arcoaire, KeepRite, and Day & Night models.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
