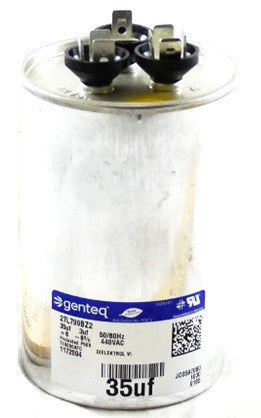

Heil Quaker ICP 1172094 Run Capacitor

The Heil Quaker ICP 1172094 is a professional-grade 35/3 Microfarad 440Vac Round Dual Run Capacitor engineered for continuous duty in residential and light commercial condensing units. As a technical veteran, you know that maintaining precise capacitance is non-negotiable for motor torque and efficiency. This dual run capacitor features a primary 35 MFD section for the compressor (HERM) and a secondary 3 MFD section for the condenser fan motor (FAN), consolidated into a single, space-saving round aluminum canister.

Operating as a direct replacement for 1086679, this unit is built to withstand high-ambient temperatures common in rooftop and outdoor installations. The 440V rating provides superior dielectric strength compared to 370V alternatives, offering increased protection against voltage spikes. This HVAC capacitor replacement is common across brands like Heil, Tempstar, and Comfortmaker, ensuring broad refrigerator and AC part compatibility. When diagnosing a failed motor, verify the microfarad (uF) ratings and physical dimensions to ensure a proper fit within the existing mounting strap. This 35+3 MFD 440V capacitor is essential for restoring optimal Power Factor and reducing amperage draw, extending the service life of expensive system components.

• Dual-Section Design: Simultaneously supports the compressor and fan motor, simplifying wiring with clearly marked terminals (C, HERM, FAN).
• Enhanced Durability: Rated for 440VAC to handle fluctuating line voltage and minimize internal heat buildup.
• Precise Tolerance: Manufactured to strict capacitance tolerances to ensure accurate phase shift for PSC motors.
• Direct OEM Cross-Reference: Specifically replaces ICP part 1086679, eliminating guesswork during emergency service calls.

• Can I use a 440V capacitor if my original was 370V? Yes. A higher voltage rating can always replace a lower one as long as the microfarad (MFD) rating remains identical.
• How do I identify a failing run capacitor? Look for physical signs like a bulged top, leaking oil, or electrical symptoms such as a humming motor that fails to start or a tripped breaker.
• Does the physical shape (round vs. oval) matter? Electrically, no. However, this round 1172094 must physically fit the existing mounting bracket in your unit?s control box.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
