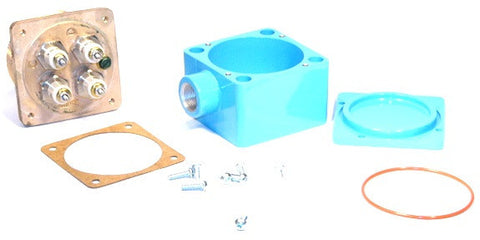

Warrick 3E4B Fitting

For high-performance level management, the Warrick 3E4B stands as the industry benchmark for multi-point sensing in high-pressure environments. This 4-probe electrode fitting is engineered with a rugged red brass body, specifically designed to withstand the rigorous demands of hydronic systems, chemical processing, and industrial boiler applications. With a 2-1/2 inch NPT mounting, this 3E series fitting provides a secure, pressure-tight seal capable of handling 250 PSIG at 406°F. Designed for contractors who prioritize long-term reliability, the Warrick 3E4B fitting simplifies complex monitoring by supporting four distinct set points from a single entry point. This configuration is essential for liquid level control tasks such as high/low alarms and pump-up/pump-down sequencing. It is fully compatible with 3R rigid probes and 3W wire suspended electrodes, allowing for precise customization based on tank depth and liquid conductivity. By integrating Warrick conductivity-based sensors, you ensure accurate, drift-free level detection that eliminates the common failure points associated with mechanical float switches.

• Enhanced Durability: The corrosion-resistant red brass construction ensures longevity in harsh HVACR and industrial environments.
• Versatile 4-Probe Design: Monitor up to four specific liquid levels simultaneously, reducing the need for multiple tank penetrations.
• High-Pressure Capability: Rated for up to 250 PSIG, making it suitable for both atmospheric and pressurized vessels.
• Standardized Fit: The 2.5" NPT connection and 1/2" NPT conduit boss provide seamless integration with standard piping and electrical layouts.

• Which electrodes are compatible with the 3E4B? Use 3R rigid rods for shallow applications or 3W wire-suspended probes for deeper wells or tanks.
• Can this be used in non-metallic tanks? Yes, but ensure one probe is designated as a ground reference or used in conjunction with a metallic tank wall.
• Is the terminal housing included? The Warrick 3E4B features a robust terminal housing to protect electrical connections from moisture and debris.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
