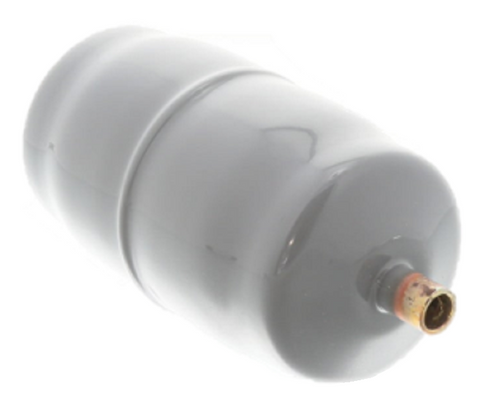

Sporlan 404201 HPC-163-S-HH Filter Drier

The Sporlan 404201 HPC-163-S-HH Filter Drier is a specialized bi-directional filter drier engineered specifically for liquid line protection in high-demand heat pump systems. This Catch-All series component features a 16 cubic inch molded desiccant core with an HH-style charcoal blend, making it the industry standard for refrigerant clean-up after burnout. Unlike standard driers, the HPC-163-S-HH utilizes internal stainless steel check valves to ensure that refrigerant flow is always directed through the core media, regardless of whether the system is in heating or cooling mode, preventing collected debris from being flushed back into the circuit. The 3/8" ODF sweat copper connections allow for a reliable leak-proof installation in systems ranging from 1 to 8 tons. Rated for a maximum working pressure of 650 PSIG, this reversible filter drier is fully compatible with R-410A, R-22, and other common HFC/HCFC refrigerants, providing superior moisture and acid removal to protect the compressor and TEV.

• Contaminant Capture: The HH-style core contains activated charcoal to effectively remove acids, varnish, sludge, and wax during compressor burnout recovery.
• Bi-Flow Efficiency: Integrated check valves eliminate the need for external piping work in heat pump applications while maintaining a low pressure drop.
• Durable Construction: Features a rugged steel shell with an epoxy powder coating to resist corrosion in harsh environments.
• Universal Compatibility: Designed for use with air conditioning and HVACR systems utilizing 3/8" liquid lines.
• Simplified Installation: The compact, sealed model design facilitates quick retrofit or OEM replacements in tight mechanical spaces.

Can this drier be used for normal operation instead of just clean-up?
Yes, while the HH-style core is optimized for cleanup, it is suitable for permanent installation in heat pump liquid lines to provide ongoing protection against moisture and particulates.

Does it matter which way the arrow points during installation?
The HPC-163-S-HH is a bi-directional unit, so it handles flow in both directions; however, proper alignment with the liquid line path ensures the internal check valves operate as intended for maximum filtration.

Is this model compatible with R-410A systems?
Yes, it is rated for 650 PSIG, making it fully compliant with the high-pressure requirements of R-410A refrigerant circuits.
