Rheem-Ruud 47-22860-04 Limit Switch

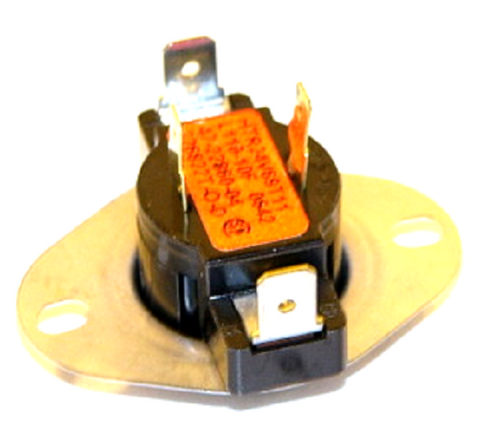

The Rheem-Ruud 47-22860-04 Limit Switch is a critical OEM furnace safety control engineered for precise thermal monitoring in high-efficiency HVAC systems. This SPST normally closed switch features a fixed open temperature of 110 degrees F and a fixed close temperature of 100 degrees F, ensuring optimal airflow regulation and protection against over-temperature conditions. Built with a 2-watt heat-assisted design, this component provides enhanced responsiveness and tighter temperature control compared to standard non-assisted switches. As an auto-reset limit switch, it automatically re-engages once temperatures return to the 100°F threshold, minimizing system downtime while maintaining strict safety parameters. Identifiable by its orange color coding, the 47-22860-04 is a direct-fit replacement for various Rheem, Ruud, and Richmond residential furnaces and air handlers. For contractors, utilizing this genuine Rheem replacement part ensures full compatibility with the factory 69T TOD series specifications, maintaining the original equipment’s UL certification and performance standards.

• Factory Precision: Fixed 110°F open and 100°F close settings provide reliable furnace high limit protection without the drift associated with universal adjustables.
• Heat-Assisted Accuracy: The 2-watt internal heater allows the switch to react faster to temperature spikes, preventing potential heat exchanger damage.
• OEM Integrity: Designed as a genuine 47-22860-04 part, ensuring standardized mounting and terminal alignment for faster field installations.
• System Reliability: Features an auto-reset mechanism that eliminates manual intervention after a temporary temperature excursion.

How do I identify a faulty Rheem-Ruud limit switch?
A failed limit switch often causes the furnace blower to run continuously or prevents the burners from igniting. If the switch remains open (no continuity) despite the plenum being cool, it likely needs replacement.

What does the orange color coding signify on this part?
The orange color is a specific Rheem-Ruud technical indicator for the 110/100 degree temperature range and heat-assisted functionality, distinguishing it from other HALC or TOD series switches.

Can I use a non-heat-assisted switch in place of the 47-22860-04?
It is not recommended. The 2-watt heat assist is calibrated to the unit's thermal cycle; replacing it with a standard switch may lead to "nuisance tripping" or delayed safety responses.
