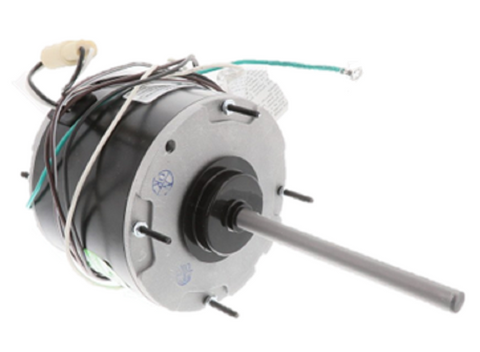

A.O. Smith FSE1026SV1 Motor

1/4HP, 208-230 Vac, Single Phase, 1075 RPM, 1 Speed, 1.2 Amps, 48 Nema Frame Size, Enclosed, Sleeve Bearing, 1/2" x 6 1/2" Shaft, Reversible Rotation, Permanent Split Capacitor Motor

FSE1026SV1 is the direct replacement for F48E06A48

A.O. Smith FSE1026SV1 Motor – 1/4 HP 208-230V 1PH 1075 RPM PSC Motor

The A.O. Smith FSE1026SV1 is a high-performance Permanent Split Capacitor (PSC) motor designed for reliable and efficient operation in HVAC systems. Operating at 1/4 HP and 1075 RPM, this single-speed motor is compatible with 208-230V single-phase power. Featuring a 48 NEMA frame size, sleeve bearings, and a totally enclosed air-over (TEAO) design, it’s built for durability in demanding environments.

This motor is suitable for all-angle mounting, offers reversible rotation, and includes a 1/2" x 6 1/2" shaft for flexible installation. It’s a direct replacement for applications requiring consistent, low-speed air movement.

Key Specifications:

• Horsepower: 1/4 HP

• Voltage: 208-230V, Single Phase

• Amps: 2.00

• Speed: 1075 RPM, 1-Speed

• Frame Size: 48 NEMA

• Mounting: All Angle

• Rotation: Reversible

• Bearing Type: Sleeve

• Enclosure: Totally Enclosed Air Over (TEAO)

• Capacitor: 5 MFD

• Ambient Temperature: 60°C

• Type: PSC Motor

• Shaft Dimensions: 1/2" x 6-1/2"

• URI Part Number: FSE1026SV1
