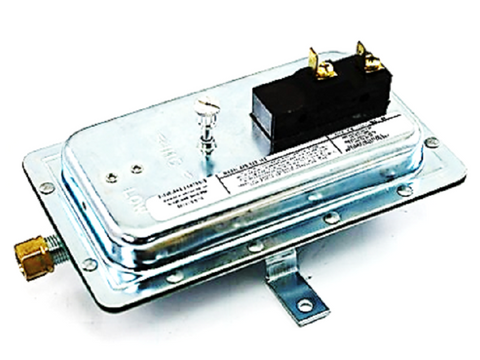

Aaon P62520 Pressure Switch

The Aaon P62520 Pressure Switch is a critical engineering component designed for precise atmospheric monitoring within AAON rooftop units and air handling systems. This adjustable differential pressure switch features a .17" WC setpoint, providing reliable signal feedback for HVAC proof of flow and filter status monitoring. Engineered for high-cycle durability, the P62520 ensures the mechanical integrity of the fan safety circuit by detecting pressure variations that indicate belt failure or restricted airflow. As a genuine AAON replacement part, this switch maintains OEM specifications for electrical ratings and mounting configurations, ensuring seamless integration with existing control logic boards. Field technicians rely on the P62520 for its repeatable accuracy in low-pressure applications where maintaining strict static pressure limits is essential for system efficiency and compressor protection. By monitoring the differential pressure setpoint, this component prevents equipment operation under hazardous low-flow conditions, safeguarding the entire refrigerant circuit.

• OEM Compatibility: Exact drop-in replacement for AAON units, ensuring correct pressure switch calibration without modifying brackets.
• Precision Sensitivity: Reactive to .17" WC, making it ideal for clogged filter detection and sensitive airflow proving.
• Industrial Construction: Built to withstand the temperature fluctuations and vibrations common in heavy-duty commercial HVAC systems.
• Adjustable Range: Allows for fine-tuning in the field to meet specific duct static pressure requirements.

Common Questions

How do I troubleshoot a persistent pressure switch trip on an AAON unit?
Verify there are no obstructions in the sensing tubes and check for cracked vinyl tubing. If the Aaon P62520 fails to close while the blower is at full speed, use a manometer to verify if the actual differential pressure exceeds the .17" WC threshold.

What is the primary function of the P62520 in a rooftop unit?
It serves as a safety interlock, typically used for proving fan operation or monitoring filter loading. If the switch remains open, the controller will lockout the heating or cooling stages to prevent coil freezing or heat exchanger damage.

Can this switch be used for both positive and negative pressure applications?
Yes, the differential pressure switch design allows for monitoring the pressure drop across a component or the difference between a duct and atmospheric pressure.
