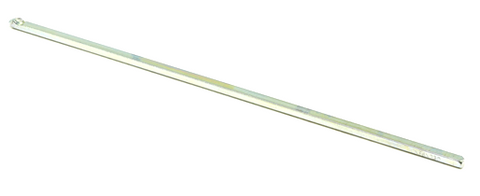

ABB OXS6X330 Shaft

The ABB OXS6X330 Shaft is a high-performance mechanical linkage component specifically engineered for industrial switch disconnectors and control panel configurations. Featuring a standardized 6mm diameter and a versatile 330mm length, this operating shaft provides the necessary extended reach to connect remotely mounted selector handles to internal switch mechanisms, such as the ABB OT16F to OT125F series and OS30 disconnect switches. Its square cross-section ensures a secure, non-slip engagement, maintaining structural integrity during repeated manual operations in demanding industrial automation environments.

Constructed from high-grade metal, the OXS6X330 replacement shaft simplifies the installation process for electricians and panel builders by bridging the gap between the handle actuator and the switch deep within an enclosure. This disconnect shaft accessory is fully RoHS compliant, meeting stringent global safety and environmental standards. Whether you are performing a repair or upgrading a motor control center, this precision-machined shaft provides the reliability and precision required for seamless power distribution management.

Key Benefits

• Extended Outreach: The 330mm length is ideal for deep enclosures, allowing external control of internal switchgear.
• Precision Compatibility: Specifically designed for ABB selector handles and OT series disconnect switches.
• Industrial Durability: Robust metal construction handles the mechanical stress of frequent switching without deformation.
• Secure Torque Transfer: The 6x6mm square profile prevents handle slippage, ensuring accurate switch positioning.

Common Questions

Which switch models are compatible with this shaft?
This shaft is primarily designed for use with ABB OT16F, OT25F, OT40F, OT63F, OT80F, and OS30 disconnect switches.

Can this shaft be cut to a shorter length?
Yes, many technicians cut the metal shaft to the specific mounting depth required for their custom control panel, provided the ends remain clean for handle engagement.

Is the OXS6X330 suitable for outdoor enclosures?
While the shaft itself is a durable metal component, the overall IP rating (such as IP54) depends on the selector handle used and the quality of the enclosure seal.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
