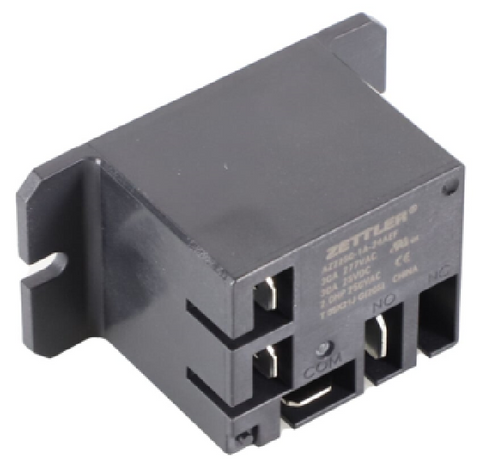

Advanced Distributor Products 76701259 Heat Relay

The Advanced Distributor Products (ADP) 76701259 4 Prong Heat Relay is an electrical replacement component designed for compatible ADP HVAC heating systems. This ADP heating relay controls electrical switching functions within the heating circuit, helping ensure proper operation of the equipment.

Designed for applicable ADP CP-Series air handlers, the 76701259 heat relay provides electrical switching for heating control applications. A defective relay may cause heating failures, intermittent operation, or improper equipment cycling.

This HVAC 4-prong heat relay is intended for professional replacement of a failed or malfunctioning relay. Before installation, verify the equipment model, original part number, coil voltage, contact ratings, and terminal configuration to ensure proper compatibility and safe operation.

Key Benefits

• Manufacturer: Advanced Distributor Products (ADP)

• Part Number: 76701259

• Product Type: Heat Relay

• Terminal Configuration: 4 Prong

• Application: Compatible ADP CP-Series air handlers

• Provides electrical switching for heating control circuits.

• Helps restore proper heating operation when replacing a defective relay.

• Supports reliable electrical control and equipment cycling.

• Designed for HVAC heating system maintenance and repair.

• Suitable for professional HVAC service applications.

Common Questions

Q: What is the ADP 76701259 heat relay used for?

A: It controls electrical switching functions in compatible ADP heating systems, allowing the heating circuit to operate according to the equipment's control sequence.

Q: How many terminals does the ADP 76701259 relay have?

A: The ADP 76701259 is identified as a 4-prong heat relay. Verify the terminal arrangement and electrical ratings before installation.

Q: Is the ADP 76701259 compatible with CP-Series air handlers?

A: Yes. ADP replacement parts documentation identifies the 76701259 as a 4-prong heat relay for applicable CP-Series air handlers. Confirm compatibility with your specific equipment model.

Q: What is the difference between ADP 76701259 and 76701324?

A: The ADP 76701259 is a 4-prong heat relay associated with CP-Series air handlers, while the ADP 76701324 is a 6-prong relay associated with CE-Series models. These components should not be considered interchangeable without manufacturer verification.

Q: What are the symptoms of a defective HVAC heat relay?

A: Common symptoms include no heat, intermittent heating, failure to energize the heating circuit, or improper electrical switching.

Q: Can I replace the ADP 76701259 with a universal relay?

A: A replacement relay must match the original coil voltage, contact ratings, switching configuration, and terminal arrangement. Manufacturer-approved replacement parts are recommended.

Disclaimer

While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

76701259 is the cross for HN61PC006
