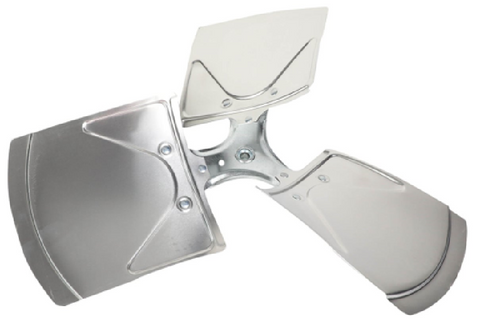

Amana-Goodman B1086775S Fan Blade

The Amana-Goodman B1086775S Fan Blade is an OEM condenser fan blade used on compatible Goodman, Amana, and Janitrol air-conditioning, heat-pump, and packaged HVAC equipment. Goodman parts documentation identifies B1086775S as the specified fan blade on multiple equipment models.

The current B1086775SP replacement fan blade is a 22-inch, 3-blade condenser fan blade with a 1/2-inch bore, 25-degree blade pitch, and counterclockwise rotation. B1086775SP is listed as the replacement for the older B1086775S part number.

This condenser fan blade moves outdoor air across the condenser coil to maintain proper heat transfer and system airflow. When replacing a bent, damaged, or unbalanced blade, verify the equipment model number, blade diameter, bore size, rotation, pitch, motor shaft size, and mounting position before installation. Correct blade selection is important for maintaining proper airflow, motor loading, condenser performance, and minimizing vibration.

Key Benefits

• Manufacturer: Amana-Goodman
• Part Number: B1086775S
• Current Replacement: B1086775SP
• Component: Condenser Fan Blade
• Diameter: 22 inches
• Number of Blades: 3
• Bore: 1/2 inch
• Blade Pitch: 25°
• Rotation: Counterclockwise (CCW)
• Designed for compatible Goodman, Amana, and Janitrol HVAC equipment
• Helps maintain proper condenser airflow and heat transfer
• Direct replacement option for applicable equipment originally using B1086775S

Common Questions

What replaces the Goodman B1086775S fan blade?
The B1086775SP is listed as the direct replacement for B1086775S.

What size is the B1086775S replacement fan blade?
The B1086775SP replacement is specified as a 22-inch, 3-blade condenser fan blade with a 1/2-inch bore and 25-degree pitch.

Which direction does the fan blade rotate?
The replacement B1086775SP is specified for counterclockwise (CCW) rotation.

Will this fan blade fit my Goodman or Amana unit?
Compatibility should be verified using the complete equipment model number. Do not select a fan blade based only on its diameter or physical appearance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

This item is not eligible for free shipping.

B1086775S is the cross for B1086775SP
