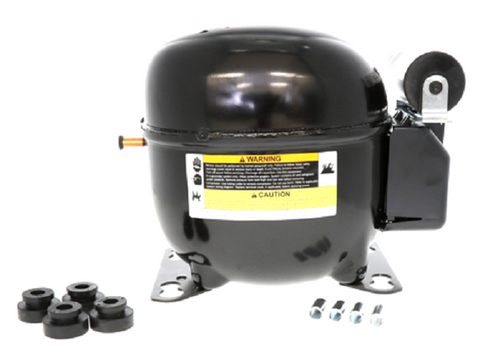

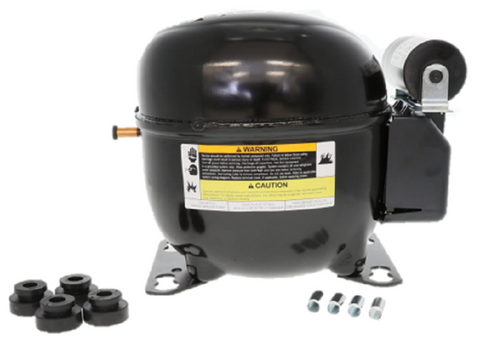

Copeland ARE35C5E-IAA-901 Compressor

The Copeland ARE35C5E-IAA-901 is a high-efficiency hermetic reciprocating compressor engineered for low-temperature refrigeration applications. Running on 115V single-phase power, this unit delivers a nominal 3500 BTU/hr capacity while utilizing R-404A or R-507 refrigerant. This model features POE oil to ensure proper lubrication and thermal stability across demanding duty cycles. As the primary ARE37C3E-IAA-901 replacement, it maintains identical mounting footprints and plumbing orientations, making it a drop-in solution for light commercial refrigeration units. Built for reliability in low-temperature evaporative systems, the ARE35C5E-IAA-901 offers 1/2 HP performance with a focus on high torque start (HST) capabilities, ensuring the system returns to setpoint quickly even under high-load conditions after defrost cycles.

• Direct OEM Replacement: Engineered specifically to replace the discontinued ARE37C3E-IAA-901 without piping modifications.
• Optimized for R-404A: Designed for modern refrigerants to provide maximum volumetric efficiency and cooling capacity.
• Small Footprint: The compact hermetic design is ideal for reach-in coolers, ice machines, and under-counter refrigeration.
• Suction Cooled Motor: Reliable motor cooling via return gas ensures long-term operation in tight machine compartments.

Common Questions

Is the ARE35C5E-IAA-901 compatible with R-22 systems? No, this compressor is optimized for R-404A/R-507 and contains POE oil, which is not compatible with mineral oil-based R-22 systems.

Does this unit include the starting components? This model typically requires a specific start capacitor and relay; always verify current draw against the nameplate during installation.

Can I use this for medium-temperature applications? While primarily a low-temp compressor, it can operate in certain medium-temp ranges, though efficiency is maximized for low-temperature suction pressures.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

ARE35C5E-IAA-901 is the cross for AE1250E-212-J7
