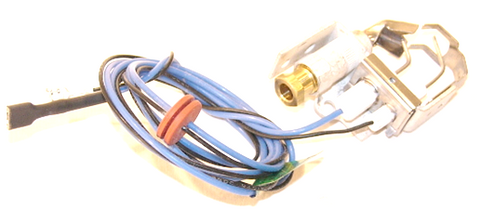

Armstrong Furnace R40406-007 Pilot Assembly

The Armstrong Furnace R40406-007 Pilot Assembly is a critical OEM component designed for precise ignition and flame sensing in gas-fired heating systems. This natural gas pilot assembly functions as the direct factory replacement for the legacy R40406-002 model, ensuring a seamless drop-in fit for technicians servicing older Armstrong, AirEase, and Concord units. Engineered to provide a stable pilot flame under varying gas pressures, this assembly incorporates a durable thermocouple and electrode array designed to maintain continuity within the safety circuit. For contractors troubleshooting ignition failure or improper flame rectification, replacing the entire assembly ensures all interconnected components meet original equipment tolerances. Proper installation of the Armstrong R40406-007 restores reliable burner ignition, minimizing nuisance lockouts and ensuring the furnace operates at peak efficiency throughout the heating cycle. This replacement part is vital for maintaining the internal combustion integrity of residential forced-air systems.

• Direct OEM Matching: Replaces the R40406-002 without the need for field modifications or bracket adjustments.
• Stable Flame Performance: Specifically tuned for natural gas applications to ensure consistent thermal output for the sensor.
• Simplified Installation: Features integrated wiring leads and mounting hardware for efficient swap-outs during service calls.
• System Compatibility: Validated for use across multiple brands within the Allied Air corporate family.

Common Questions

Is the R40406-007 compatible with older R40406-002 pilot assemblies?
Yes, the R40406-007 is the designated manufacturer replacement for the discontinued R40406-002, featuring identical mounting points and electrical specifications.

Does this assembly include the sensing probe and ignition lead?
Yes, this is a complete pilot assembly designed to replace the entire pilot burner and sensing mechanism in one unit.

Will this pilot assembly work for propane (LP) furnaces?
This specific configuration is calibrated for natural gas; ensure you verify the orifice sizing if converting for liquid propane applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
