Arrco AA54KP-HF5 Compressor

200/230v3ph 5Ton R410a Compr

AA54KP-HF5 is the direct replacement for ZP54K5E-TF5-800

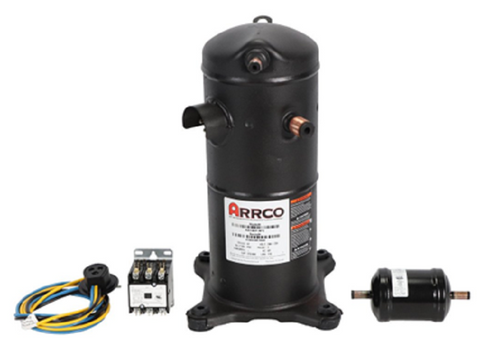

Arrco AA54KP-HF5 5 Ton R410A Compressor – 200/230V 3-Phase for Air Conditioning

The Arrco AA54KP-HF5 Compressor is a high-performance, 5-ton R410A unit engineered for reliable and efficient air conditioning applications. Designed for commercial and residential HVAC systems, this scroll compressor delivers 54,000 BTU/h of cooling power with dependable operation in demanding environments.

Key Features:

• Model: AA54KP-HF5

• Capacity: 5 Ton / 54,000 BTU/h

• Refrigerant: R410A

• Voltage/Phase: 200/230V, 3-Phase, 60Hz

• Oil Type: POE (Polyolester)

• Application: Air Conditioning

• Performance Range:

  • Discharge/Suction Temperature: 50/100 – 45/130°F

  • RG./Liq Temp: 70/85 – 65/115°F

  • Watts: 3400–5070

  • Amps: 10.45–14.4

• Electrical Ratings:

  • LRA: 110A

  • MCC: 24.4A

  • Max Operating Current: 20A

  • Run Load Amps: 14.3 (contactor), 12.8 (breaker & wire)

Additional Specifications:

• Oil Charge: 42 oz | Oil Recharge: 38 oz

• Discharge Connection: 1/2" stub

• Suction Connection: 7/8" stub

Built for durability and efficiency, the Arrco AA54KP-HF5 is the ideal replacement or upgrade compressor for HVAC professionals seeking dependable cooling performance.

This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
