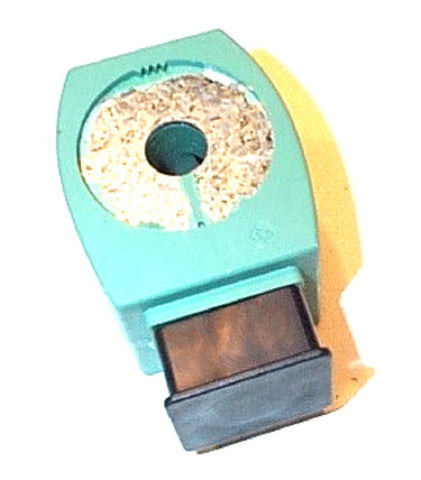

ASCO 238212-058 Coil

The ASCO 238212-058 is a high-performance replacement solenoid valve coil engineered for industrial HVACR and process control applications. Operating at 240V AC (50/60 Hz), this Type SFT coil provides a specialized solution for maintaining electromagnetic force in compatible valve bodies. With a specific power consumption of 6.1 Watts, it offers an efficient balance between actuation reliability and energy draw—critical for continuous duty cycles in commercial refrigeration and air handling systems.

Designed with a Class F insulation rating and a spade terminal (1/4" connection), this coil ensures a secure, heat-resistant interface suitable for high-ambient environments ranging from -10°C to +60°C. As a genuine ASCO flow control component, the 238212-058 240V coil is built to original equipment manufacturer (OEM) standards, ensuring exact physical fitment and electrical compatibility for 2-way and 3-way valve configurations requiring the SFT series magnetic head. This part is essential for technicians performing corrective maintenance on leaking or burnt-out solenoid operators where 240-volt solenoid coil specifications are required.

• Optimized Power Draw: The 6.1W energy consumption minimizes heat generation within the solenoid operator while maintaining consistent magnetic flux.
• High-Grade Insulation: Features Class F epoxy-molded construction to withstand moisture and thermal stress in demanding HVACR mechanical rooms.
• Universal Compatibility: Standard spade connection allows for rapid field installation and integration with existing wiring harnesses.
• OEM Precision: Direct ASCO 238212-058 replacement ensures the electrical characteristics match the original valve's pressure rating and response time.

What causes an ASCO 238212-058 coil to burn out?
Coil failure typically results from sustained over-voltage, mechanical binding within the valve stem, or excessive ambient heat. Always verify that the 240V supply is stabilized before replacing the component.

Can I use this 6.1W coil to replace a 10.1W version?
No. Solenoid coils must be matched exactly to the wattage and voltage ratings specified by the valve body manufacturer to ensure the plunger has enough lift capacity to open against system pressure.

Is the spade terminal orientation adjustable?
The coil can generally be rotated 360 degrees on the valve stem during installation, allowing for flexible positioning of the spade connectors to suit your conduit layout.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
