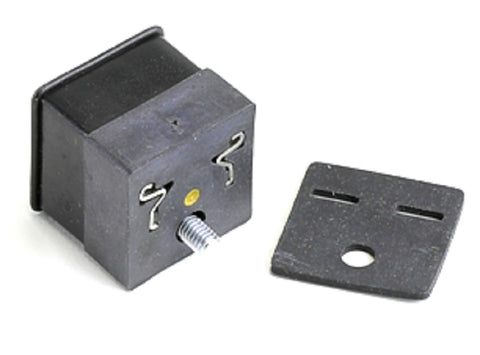

ASCO 276-983 Terminal Kit

The ASCO 276-983 Terminal Kit is a field-installable DIN connector kit designed for seamless integration with ASCO solenoid valves. This kit facilitates a secure electrical interface, specifically engineered for RedHat solenoid pilot valves and series 8210, 8262, and 8314 configurations. By utilizing a DIN 43650 Form A connection, technicians can ensure a NEMA 4X rating when properly installed with the included gasket and mounting screw. The spade terminal kit simplifies field wiring in tight enclosures, providing a reliable 3-pole plus ground termination point. This valve electrical connector is essential for industrial automation environments where vibration resistance and environmental sealing are critical for long-term reliability. Its robust construction ensures low contact resistance and high dielectric strength across standard voltage ranges. Incorporating this ASCO replacement terminal into your service routine ensures a professional, code-compliant installation that minimizes downtime during solenoid maintenance or replacement.

Key Benefits:

• Standardized DIN 43650 Form A terminal interface for universal compatibility with ASCO 3-pin coils.
• Achieves NEMA 4X environmental protection when installed with the high-grade nitrile rubber gasket.
• Streamlines solenoid valve electrical wiring for faster field integration and troubleshooting.
• Durable 3-pole plus ground configuration supports various AC and DC voltage applications.
• Ensures secure terminal connection that resists mechanical loosening in high-vibration HVACR systems.

Common Questions:

Does this kit include the gasket and mounting screw?
Yes, the ASCO 276-983 includes the terminal block, housing, gasket, and the necessary center mounting screw for a complete installation.

Can I use this on 120V and 240V AC systems?
This ASCO DIN terminal kit is designed to handle standard industrial voltages, including 120V, 240V AC, and 24V DC, provided the amperage remains within the connector's rating.

Will this fit RedHat II solenoid valves?
This solenoid coil connector is specifically designed for ASCO RedHat and RedHat II series valves that feature the 3-pin DIN spade connection.
