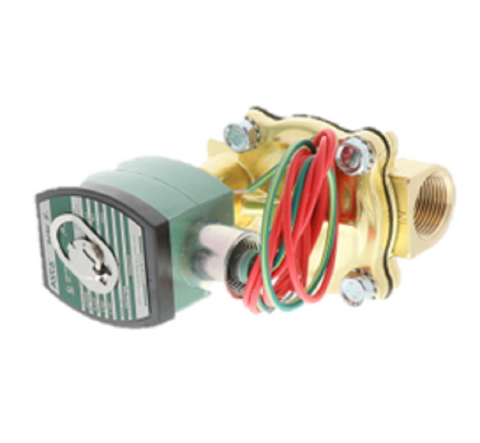

ASCO 8210G13 Solenoid Valve

The ASCO 8210G13 Solenoid Valve is an industrial-grade, 2-way normally open control solution designed for high-performance fluid and gas management. Featuring a robust brass body and high-flow 6.5 Cv capacity, this 3/4" NPT solenoid valve is ideal for general service applications involving air, inert gas, water, and light oil. The pilot-operated mechanism ensures efficient operation across a wide pressure spectrum, supporting up to 250 PSI for air and 200 PSI for water and light oil. Built with a NEMA 4X enclosure, the ASCO 120Vac coil provides superior protection against corrosion and environmental elements, making it a reliable choice for HVACR systems, laundry equipment, and industrial water control. This RedHat II series valve utilizes durable NBR seals to maintain low internal leakage and extend service life in demanding commercial environments.

• Enhanced Durability: Rugged brass construction and NEMA 4X watertight protection ensure long-term reliability in harsh conditions.
• High Flow Efficiency: A generous 6.5 Cv flow coefficient minimizes pressure drop across the system.
• Versatile Media Handling: Optimized for multiple fluids, including clean water, non-corrosive liquids, and inert gases.
• Normally Open Safety: Designed to remain open in the de-energized state, facilitating continuous flow during power loss where required.

What is the maximum fluid temperature for this valve?
The ASCO 8210G13 is typically rated for fluid temperatures up to 180°F, depending on the specific media and ambient conditions.

Can this solenoid valve be mounted in any orientation?
For optimal performance and to prevent debris accumulation, it is recommended to mount the valve with the solenoid vertical and upright, though other positions may be acceptable per technical guidelines.

How do I ensure the Nema 4X rating is maintained?
Proper installation of conduit and electrical connections is essential to preserve the integrity of the watertight enclosure against moisture and corrosion.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
