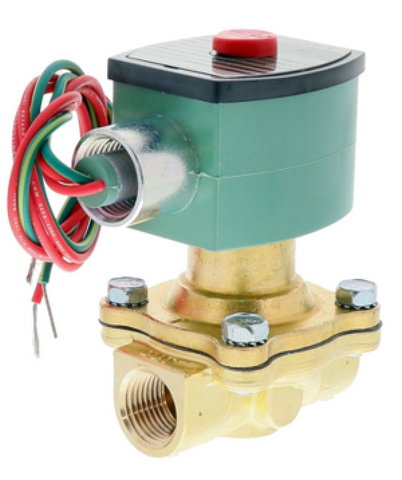

ASCO 8210G34 Solenoid Valve

The ASCO 8210G34 Solenoid Valve is a high-performance 2-way normally open solenoid valve designed for reliable control in demanding HVACR and industrial applications. Built with a rugged brass body and durable NBR seals, this pilot operated solenoid valve provides exceptional flow capacity with a 4 Cv flow coefficient. Engineered for general service, it manages 120Vac power to control 1/2 inch NPT pipe connections. This versatile valve supports a wide range of pressures, including 0-125 PSI for gas (rated at 188,000 BTU/hr), 0-150 PSI for air and water, and 0-125 PSI for light oil. To ensure longevity in harsh environments, it features a Nema 4X enclosure, providing superior protection against corrosion and moisture. Whether used in commercial heating or industrial fluid control, the ASCO 8210G34 delivers the precisian and durability required for critical automated systems.

• High Flow Efficiency: Features a high 4 Cv rating for maximum throughput in 1/2" NPT systems.
• Multi-Medium Compatibility: Expertly handles air, water, light oil, and fuel gas.
• Industrial-Grade Protection: The Nema 4X watertight and dust-tight enclosure ensures reliable operation in washdown or corrosive areas.
• Normally Open Configuration: Provides a fail-safe open position, essential for specific venting and bypass applications.

Common Questions

What is the maximum pressure rating for gas applications?
This valve is rated for 0-125 PSI when used with gas, supporting a capacity of 188,000 BTU/hr.

Can this ASCO valve be installed outdoors?
Yes, the Nema 4X enclosure is designed to provide protection against environmental hazards, making it suitable for indoor and outdoor use.

What is the difference between pilot operated and direct acting valves?
As a pilot operated valve, the 8210G34 uses the pressure of the fluid line to assist in opening and closing, allowing for higher flow rates at higher pressures compared to direct acting models.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
