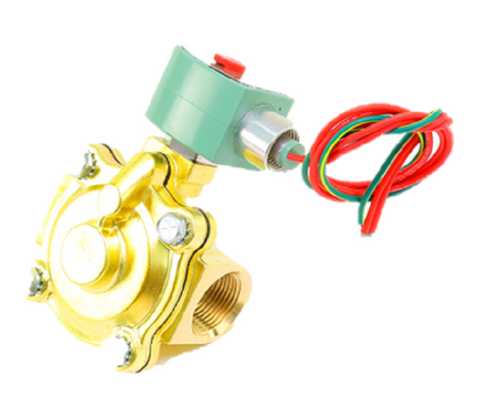

ASCO 8210G4-24V Solenoid Valve

The ASCO 8210G4-24V Solenoid Valve is a premier 1 inch NPT solenoid valve designed for high-performance fluid control in industrial and commercial environments. This 2-way normally closed solenoid valve features a robust brass body and high-quality NBR seals, making it an ideal choice for managing air, water, and light oil. With a high flow coefficient of 13 Cv, this pilot-operated valve ensures minimal pressure drop while supporting an operating pressure range of 5 to 150 PSI for air and water applications. The 24Vac solenoid is housed in a durable NEMA 4X enclosure, providing superior protection against water ingress and corrosion in demanding HVACR and process control systems. Engineered by ASCO, a leader in general service solenoid valves, the 8210 series is renowned for its reliability and long service life in applications ranging from car washes to municipal water control.

• Optimal Flow Performance: The large 1-inch port and 13 Cv flow factor permit high-volume fluid transfer with efficiency.
• All-Weather Protection: Standard NEMA 4X enclosure ensures watertight and corrosion-resistant performance in harsh environments.
• Versatile Media Compatibility: Specifically rated for air and water (5-150 PSI) and light oil (5-100 PSI).
• Reliable Pilot Operation: Designed for general service, providing consistent opening and closing cycles under pressure.
• Industry-Standard Voltage: Operates on a standard 24V AC power supply, common in most HVAC and industrial automation panels.

What is the difference between AC and DC versions of this valve?
The ASCO 8210G4-24V is designed for 24V Alternating Current (AC). Using a Direct Current (DC) power supply on an AC coil can cause the solenoid to overheat or fail to actuate properly. Always verify your system's output voltage before installation.

Does this valve require a minimum pressure to operate?
Yes, as a pilot-operated solenoid valve, the 8210G4-24V requires a minimum differential pressure of 5 PSI to lift the diaphragm and allow flow. It is not suitable for zero-pressure or gravity-fed systems.

Can this valve be mounted in any orientation?
While ASCO valves are highly versatile, it is recommended to mount the solenoid in a vertical and upright position for the longest operational life and to prevent sediment from settling in the core tube.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
