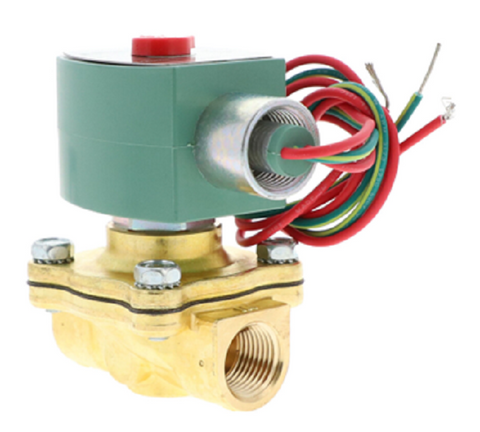

ASCO 8210G94-12VDC Solenoid Valve

The ASCO 8210G94-12VDC Solenoid Valve is a pilot-operated, 2-way normally closed general service valve specifically engineered for low-pressure fluid control in industrial and HVACR systems. Built with a rugged brass body and high-grade NBR (Buna-N) seals, this unit is optimized for air and water applications where a tight shut-off is required. It features a 1/2-inch NPT connection and is driven by a 12V DC solenoid, making it a reliable choice for mobile equipment, remote control stations, or battery-backed automation loops. With a 4 Cv flow coefficient and a pressure differential range from 0 to 40 PSI, this valve ensures high flow rates even at minimal operating pressures. The standard NEMA 4X enclosure provides superior protection against corrosion and moisture, allowing for dependable performance in demanding mechanical rooms or outdoor environments where wash-down protection is necessary.

• High Flow Efficiency: The 4 Cv rating allows for maximum throughput in 1/2" piping systems, minimizing pressure drop.
• Environmental Resilience: NEMA 4X rated watertight enclosure protects the electrical coil from harsh chemicals and spray-down conditions.
• Broad Media Compatibility: NBR elastomers provide reliable sealing for air and water service within temperature limits.
• Low Operating Pressure: Designed for systems ranging from 0 to 40 PSI, ideal for gravity-fed or low-pressure pumped loops.
• Industrial Duty Cycle: The ASCO RedHat design is a field-proven standard for long-term reliability in commercial car washes, laundry systems, and process cooling.

What is the maximum pressure rating for this ASCO 8210 series valve?
The ASCO 8210G94-12VDC is rated for a maximum operating pressure differential of 40 PSI for both air and water. Exceeding this limit may prevent the pilot from seating correctly.

Can this valve be mounted in any orientation?
For optimal performance and to prevent sediment buildup in the solenoid core tube, it is recommended to mount the valve with the solenoid vertical and upright, though it can function in other positions if necessary.

Is the 12V DC coil compatible with solar or battery systems?
Yes, the 12Vdc solenoid valve is commonly used in remote or mobile applications where standard AC power is unavailable, provided the power source can meet the holding wattage requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
