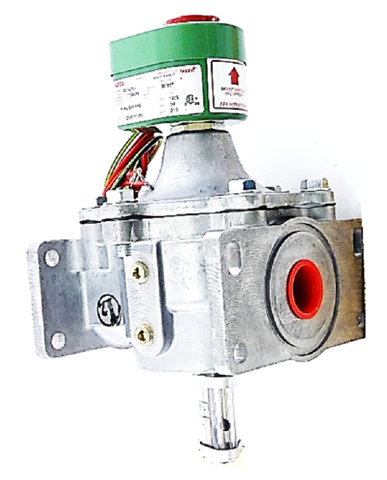

ASCO 8214235VICSA Solenoid Valve

The ASCO 8214235VICSA Solenoid Valve is a high-performance 2-way normally closed gas shutoff valve designed specifically for the rigorous demands of commercial and industrial gas burners. This direct-acting solenoid features a robust aluminum body and NBR seals, ensuring reliable fuel gas safety shutoff for systems requiring precise control. With a 3/4 inch NPT connection and an impressive 11 Cv flow factor, it manages capacities up to 593,200 BTU/hr. The 214 series architecture includes a unique double disc design with overtravel to provide redundant, leak-tight shutoff. This model is equipped with a visual indicator for immediate position status and a NEMA 1 enclosure, making it a staple for HVACR technical specifications in gas train assemblies. Operating on 120Vac, it maintains a steady 0-5 PSI pressure range, delivering the safety and efficiency required for modern combustion system components.

This item is not eligible for free shipping.

• Redundant Sealing: The double disc design ensures a leak-tight shutoff for enhanced safety in fuel gas service.
• High Flow Capacity: Rated at 11 Cv, supporting 593,200 BTU/hr for demanding industrial heating applications.
• Visual Monitoring: Integrated visual indicator allows for rapid open/shut position verification at the valve site.
• Durable Construction: Built with a rugged aluminum body and NBR (Buna-N) elastomers for long-term reliability.
• Flexible Installation: Features 3/4" NPT threading with optional flange mounting to suit various gas train configurations.

Common Questions

What media is this valve compatible with?
This ASCO solenoid valve is engineered for fuel gas service, including natural gas and propane, commonly used in industrial gas burners.

Does this valve require a minimum operating pressure?
No, this is a direct-acting or internal pilot-operated valve (depending on the specific 214 sub-series) designed to operate at 0-5 PSI, meaning it does not require a minimum differential pressure to function.

Can I use this for outdoor applications?
This specific model features a NEMA 1 enclosure, which is intended for indoor use to provide protection against contact with enclosed equipment.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
