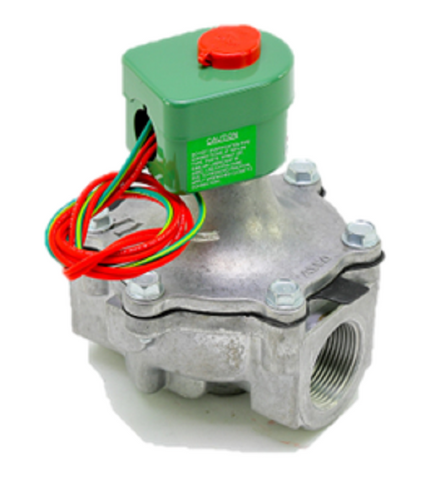

ASCO 8215B60 Solenoid Valve

The ASCO 8215B60 Solenoid Valve is a heavy-duty 2-way normally closed fuel gas shutoff valve designed for high-capacity industrial and commercial burner systems. Featuring a rugged aluminum body and an 1 1/4" NPT connection, this internal pilot-operated valve delivers a substantial flow coefficient of 32 Cv, supporting capacities up to 1,730,000 BTU/hr. Engineered for air-fuel gas service, it operates reliably within a pressure range of 0-25 PSI. The unit is equipped with resilient NBR seals and a NEMA 1 enclosure, making it a standard choice for 120Vac gas train assemblies. This ASCO RedHat series valve is frequently utilized in low-pressure gas systems for natural gas and propane (LPG) applications where positive shutoff and high-flow performance are critical technical requirements for HVACR contractors.

This item is not eligible for free shipping.

Key Benefits

• High Flow Capacity: Rated at 32 Cv and 1,730,000 BTU/hr to handle demanding industrial burner requirements.
• Reliable Gas Shutoff: The normally closed operation ensures immediate flow termination upon power loss, enhancing system safety.
• Versatile Media Compatibility: Optimized for air, natural gas, and liquefied petroleum gases in both liquid and gaseous states.
• Durable Construction: Features a lightweight aluminum valve body with 305 stainless steel core tube and 302 stainless steel springs for long-term field stability.
• Zero Minimum Differential: Designed to operate effectively even in low-pressure air-fuel applications without requiring high pressure drops to open.

Common Questions

What is the maximum pressure rating for the ASCO 8215B60?
This valve is rated for a maximum operating pressure differential (MOPD) of 25 PSI for fuel gas applications.

Can this valve be used for vacuum service?
Yes, the 8215B60 is technically rated for air and vacuum service, provided the system parameters align with the NBR seal specifications.

Is the coil compatible with standard 120V burner circuits?
Absolutely. The 120Vac / 60Hz coil is the standard configuration for most domestic and commercial gas shutoff valve control circuits.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
