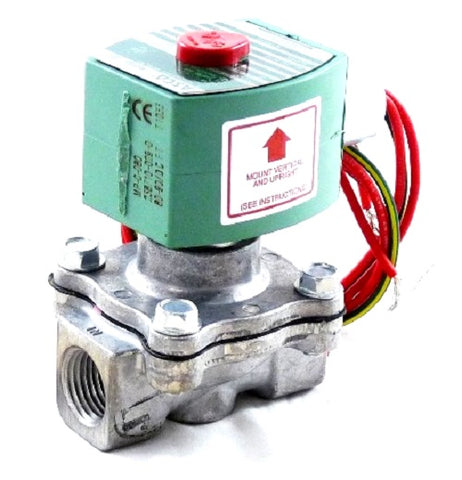

ASCO 8215G20-80/90DC Solenoid Valve

The ASCO 8215G20-80/90DC is a high-performance 2-way normally closed solenoid valve engineered specifically for critical air-fuel gas shutoff applications. Featuring a robust aluminum body and resilient NBR seals, this valve is designed to manage low pressure gas systems with a maximum operating pressure of 25 PSI. With a high flow capacity of 4.4 Cv and a rating of 238,500 BTU/hr, it ensures efficient fuel delivery for industrial burners and furnaces. The 80/90Vdc coil configuration provides reliable electrical actuation, while the NEMA 4X enclosure offers superior protection against corrosion and harsh environmental conditions. Utilizing a 1/2" NPT connection, this ASCO gas shutoff valve is a staple in HVACR systems where safety and precision gas control are paramount. Its direct-acting design ensures fast response times, making it an ideal choice for combustion system safety requirements.

• Enhanced Safety: Optimized for reliable fuel gas shutoff in low-pressure industrial combustion systems.
• Durable Construction: Lightweight aluminum housing combined with NBR seals for long-lasting performance in gas service.
• Environmentally Protected: NEMA 4X rated watertight and dust-tight enclosure suitable for indoor and outdoor installations.
• High Flow Efficiency: Large 4.4 Cv orifice allows for high volume gas flow up to 238,500 BTU/hr.

Common Questions

What is the maximum pressure rating for this ASCO 8215 series valve?
This specific model is rated for a maximum operating pressure differential of 25 PSI, specifically designed for air and fuel gas service.

Can this valve be mounted in any orientation?
For optimal performance and to meet safety standards, it is recommended to mount the valve with the solenoid vertical and upright.

Is the 80/90Vdc coil compatible with standard AC power?
No, this model requires a specific DC voltage supply. Always verify your controller output before installation to prevent coil burnout.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
