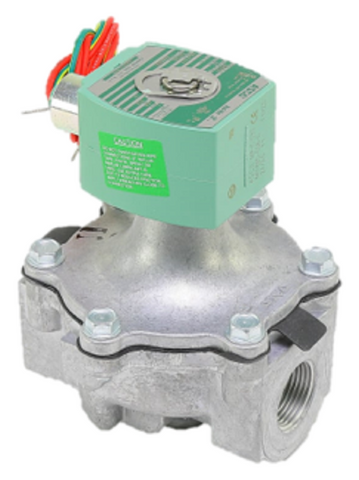

ASCO 8215G50-24VDC Solenoid Valve

The ASCO 8215G50-24VDC Solenoid Valve is a high-performance 2-way normally closed gas shutoff valve designed for critical fuel gas and air service applications. Engineered as the superior ASCO 8215B50-24VDC replacement, this 1-inch NPT solenoid valve features a lightweight aluminum body and resilient NBR seating, ensuring a tight shutoff for low-pressure systems. Operating on a 24VDC supply, the 8215G50 handles an operating pressure differential of 0 to 25 PSI, making it ideal for industrial gas burners and atmospheric heating equipment. With a high flow capacity (Cv of 21) and a gas rating of up to 1,119,000 BTU/hr, it provides reliable automatic gas shutoff for HVACR and combustion systems. This RedHat II series valve is UL listed and CSA certified, offering seamless integration into safety-critical environments requiring precise gas flow control.

• Direct Upgrade: Seamlessly replaces the obsolete 8215B50-24VDC model with modern internal components.
• Zero Minimum Pressure: Operates efficiently from 0 PSI, making it perfect for low-pressure city gas and air service.
• High Flow Capacity: A 21 Cv rating ensures maximum throughput for large 1,119,000 BTU/hr heating systems.
• Durable Construction: The aluminum body and Nema 4X rated housing provide excellent protection in varied environments.

Is the ASCO 8215G50-24VDC compatible with natural gas?
Yes, this valve is specifically designed and UL listed for use with natural gas, LP gas, and air service.

Can I use this valve to replace an 8215B50 model?
The 8215G50-24VDC is the official direct replacement for the 8215B50-24VDC, sharing the same 1" pipe size and 24VDC electrical requirements.

What is the maximum pressure for this ASCO 8215 series valve?
This specific model is rated for a maximum operating pressure differential of 25 PSI.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
