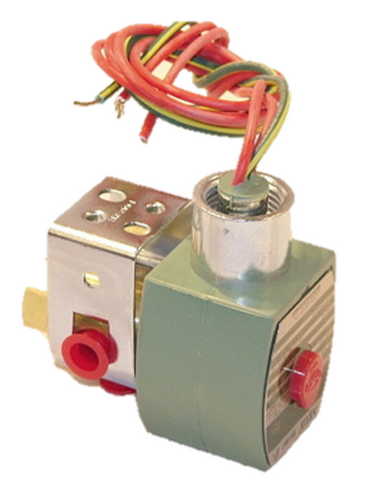

ASCO 8320G132 Valve

Valve, Solenoid, 3 Way Normally Closed, 1/8", NPT, 120Vac, .06 Cv 0-200 PSI Air, Water, and Light Oil Direct Acting General Service Brass Body with NBR Seal and Nema 4X Enclosure

ASCO 8320G132 Solenoid Valve – 3-Way, Normally Closed, Brass Body, 1/8" NPT, 120VAC

The ASCO 8320G132 is a high-performance 3-way, normally closed solenoid valve designed for reliable operation in air, inert gas, water, and light oil applications. Featuring a direct-acting brass body with Buna N (NBR) seals, this valve supports a wide pressure range from 0 to 200 PSI and is compatible with media temperatures up to 180°F.

Built with a NEMA 4X enclosure for superior environmental protection, this valve is suitable for demanding industrial and commercial applications. Its compact 1/8" NPT port size and 0.06 Cv rating provide precise flow control without requiring a minimum operating pressure differential.

Key Features & Specifications:

• Brand: ASCO

• Model: 8320G132

• Valve Type: 3-Way, Normally Closed (also available in Normally Open or Universal operation)

• Body Material: Brass (Stainless Steel options available)

• Seal Material: Buna N Elastomer

• Orifice Size: 3/64 inch

• Pipe Size: 1/8" NPT

• Voltage: 120/60 VAC, 110/50 VAC

• Flow Coefficient (Cv): 0.06

• Pressure Range: 0 – 200 PSI

• Temperature Range: Max 180°F (82°C)

• Enclosure Rating: NEMA 1, 2, 3, 3S, 4, 4X

• Media Compatibility: Air, inert gases, water, light oil (to 300 SSU)

• Mounting: Any position

• Certifications: CSA certified, UL listed, CE compliant, SIL-3 capable (EXIDA certified), optional ATEX/IECEx

Benefits:

• Direct-acting design for dependable performance without minimum pressure requirements

• Corrosion-resistant NEMA 4X enclosure for harsh environments

• Versatile media compatibility for multiple industrial uses

• Compact design for easy in-line installation

• Safety-certified for critical applications

The ASCO 8320G132 Solenoid Valve is ideal for process control, automation systems, HVAC, fluid handling, and general industrial service, delivering the durability and precision you expect from ASCO.
