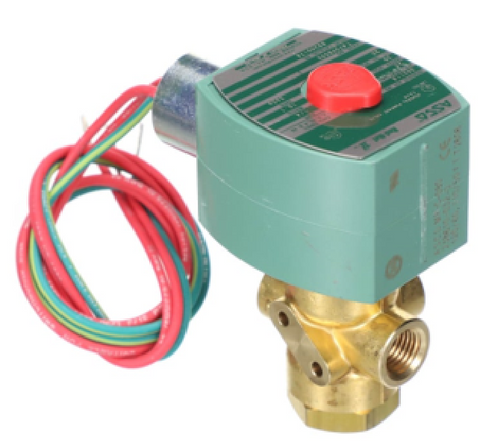

ASCO 8320G178 Valve

The ASCO 8320G178 is a high-performance 3-way universal solenoid valve designed for precision control in various industrial HVACR and fluid automation systems. This direct acting general service valve features a durable brass body and high-quality NBR seals (Buna-N), making it ideal for handling air, inert gas, water, and light oil. Operating at 120Vac, the 8320G178 supports a pressure range of 0-20 PSI with a flow coefficient of .35 Cv, ensuring reliable performance without requiring a minimum operating pressure differential. Its 1/4" NPT connection and NEMA 4X enclosure provide superior protection against harsh environments, including washdown and outdoor conditions. Engineered for versatility, this universal valve can be configured as normally closed, normally open, or as a diverter, making it a critical component for fluid automation and process control applications.

Key Benefits:

• Universal Compatibility: Can be piped for normally open, normally closed, or universal operation to fit diverse system requirements.
• Rugged Construction: The corrosion-resistant brass body and NEMA 4X rating ensure longevity in demanding HVACR environments.
• No Pressure Minimum: The direct acting design allows for operation even at zero PSI, providing flexibility for gravity-fed or low-pressure lines.
• Multi-Media Use: Optimized for air, water, and light oil, reducing the need for multiple specialized valve types in your inventory.

Common Questions:

• What is the maximum fluid temperature for this valve? The ASCO 8320G178 is typically rated for fluid temperatures up to 200°F.
• Can this valve be mounted in any orientation? Yes, the 8320 series is designed to be mountable in any position, facilitating easier integration into tight piping configurations.
• Is the NEMA 4X enclosure suitable for outdoor use? Absolutely; the NEMA 4X enclosure protects against windblown dust, rain, and hose-directed water.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
