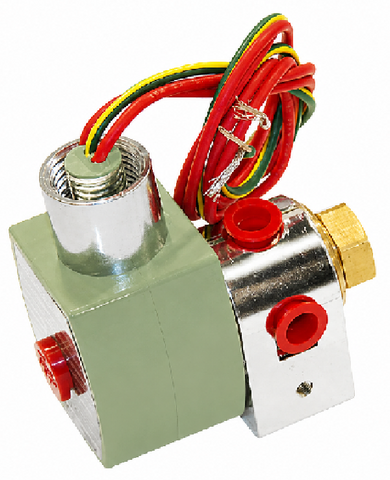

ASCO 8320G3 Valve

The ASCO 8320G3 Valve is a high-performance 3-way universal solenoid valve engineered for precision fluid control in demanding industrial and HVACR environments. This direct acting solenoid valve is constructed with a rugged brass body and durable NBR seals, making it ideally suited for the management of air, water, and light oil. With its 1/8" NPT connection and a .21 Cv flow factor, it provides reliable operation within a 0-30 PSI pressure range. Designed for versatility, the universal operation allows the valve to be piped in any configuration—normally closed, normally open, or as a diverter. The 120Vac coil is protected by a NEMA 4X enclosure, ensuring superior resistance to corrosion and moisture in harsh conditions. Whether used in analytical equipment, industrial air compressors, or laundry systems, the ASCO 8320G3 delivers consistent performance without requiring a minimum operating pressure differential.

• Universal 3-Way Configuration: Offers maximum flexibility, allowing for normally closed, normally open, or multi-directional flow control.
• Direct Acting Design: Operates reliably from 0 PSI, eliminating the need for a minimum pressure differential to function.
• NEMA 4X Protection: Features a watertight and corrosion-resistant enclosure for long-lasting service in indoor or outdoor environments.
• Broad Media Compatibility: Optimized for general service applications involving air, inert gas, water, and light oils.
• Compact Integration: The 1/8 inch NPT ports enable easy installation in space-constrained piping systems.

• What is the maximum fluid temperature for this valve? This ASCO solenoid valve is typically rated for fluid temperatures up to 180°F, depending on the specific application and media.
• Can this valve be mounted in any orientation? Yes, the 8320 series is designed to be mountable in any position, though upright mounting is often recommended to reduce sediment buildup.
• Is this valve suitable for vacuum service? While optimized for 0-30 PSI, please consult technical data to confirm specific performance ratings for vacuum-based fluid control applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
