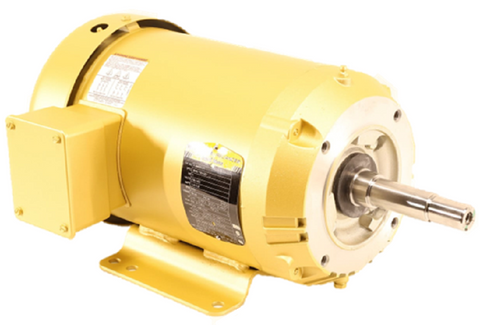

Baldor Motor EJMM3613T Motor

The Baldor EJMM3613T is a high-performance 5HP industrial pump motor engineered for continuous duty in demanding fluid handling applications. Built on a 184JM NEMA frame, this three-phase motor operates at a synchronous speed of 3600 RPM, delivering the high-torque performance required for centrifugal pumps. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against contaminants, making it a reliable choice for mechanical contractors in water treatment, food processing, and chemical sectors.

This Super-E premium efficient motor is designed to exceed NEMA standards, featuring moisture-resistant ISR (Inverter Spike Resistant) copper windings and oversized ball bearings with locked drive-end construction to minimize endplay. The 208-230/460V versatility and 1.15 service factor ensure stable operation under variable load conditions. Its close-coupled pump mounting enables direct installation, streamlining the replacement process for legacy systems while improving overall drivetrain efficiency.

• High-Efficiency Performance: Conserves energy during frequent or continuous duty cycles with NEMA Premium efficiency ratings.
• Heavy-Duty Construction: Features a robust heavy-gauge steel frame and corrosion-resistant finish for harsh industrial environments.
• Inverter Ready: Equipped to handle modern VFD (Variable Frequency Drive) systems, allowing for precise speed control and reduced energy consumption.
• Enhanced Reliability: Oversized bearings and dynamically balanced rotors reduce operational noise and vibration levels.

What are the primary applications for the EJMM3613T?
This motor is specifically designed for fluid transfer, circulating pumps, and industrial water treatment where a JM frame mounting is required.

Is this motor compatible with Variable Frequency Drives?
Yes, the EJMM3613T is inverter ready and features ISR copper windings to protect against voltage spikes common in VFD applications.

Does this unit support reversible rotation?
Yes, as a standard three-phase induction motor, it supports reversible rotation based on individual wiring configurations during installation.

This item must be shipped via trucking. Please contact us for a freight quote.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
