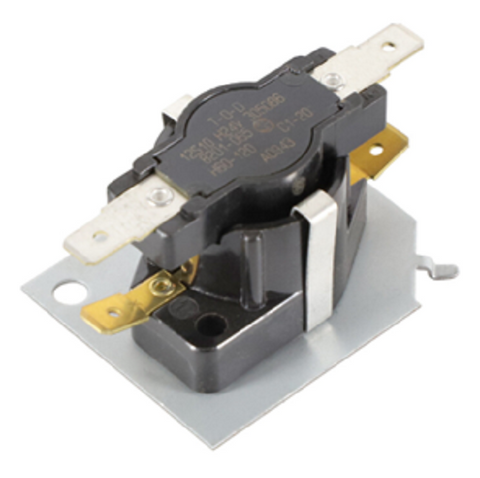

Bard HVAC 8201-065BX Relay

The Bard HVAC 8201-065BX is a critical SPST normally open time delay relay designed for professional-grade climate control systems. As a veteran-preferred HVAC part replacement, this component is engineered to provide precise timing for load sequencing and circuit protection. The 8201-065BX relay operates as the direct replacement for 8201-065, ensuring seamless mechanical and electrical integration into existing Bard wall-mount units and heat pump systems without the need for field modifications.

This OEM Bard relay functions by introducing a specific delay in the control circuit, effectively preventing rapid cycling of the compressor. By managing the interval between consecutive starts, it reduces system short cycling and mitigates mechanical stress on high-amperage components. Technicians will find the 1PNO configuration ideal for HVAC timing control applications where maintaining circuit integrity and protecting against nuisance trips are paramount. This "BX" boxed version delivers the reliable performance required for demanding commercial and industrial environments, ensuring your equipment operates within its designed performance window.

• Precise timing control to ensure optimal compressor protection.
• Directly replaces the Bard 8201-065 for standardized maintenance.
• Normally open (NO) configuration for reliable circuit interruption and safety.
• Robust SPST relay construction built for HVACR electrical loads.
• Simplifies HVAC troubleshooting by replacing chattering or pitted relays.

What is the purpose of the 8201-065BX in a Bard heat pump?

This relay is primarily used as a timing mechanism to delay the engagement of the compressor or other high-torque loads. It prevents the system from starting under high head pressure immediately after a shutdown, which is essential for protecting motor windings and extending the life of the unit.

Can I use this relay if my current unit has an 8201-065 part number?

Yes. The 8201-065BX is the official OEM replacement part for the older 8201-065 model. The "BX" suffix simply denotes the boxed packaging used for aftermarket service parts, while the internal technical specs remain identical for a "drop-in" fit.

How do I verify the delay interval for this specific part?

Technical performance should always be verified against the specific unit wiring diagram. While Bard relays are standardized for their respective model families, checking for the correct timing delay on the relay casing ensures it matches the original control logic requirements for that specific serial number.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
