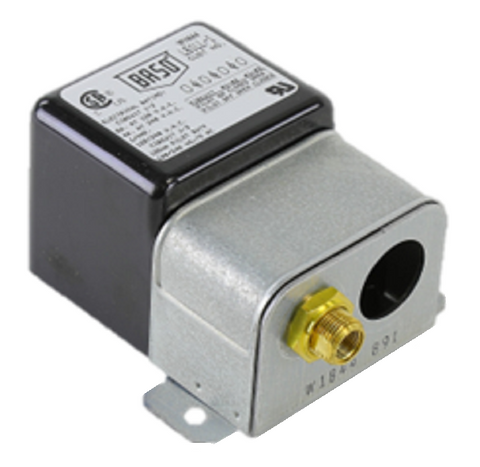

BASO L61LL-1 Pilot Switch

BASO L61LL-1 Pilot Switch

  • $419.13


AUTO RESET SPDT PILOT SWITCH

L61LL-1 is identical to L61LL-1C, HH71CC150, L61LL-3

BASO L61LL-1 Pilot Switch – Auto Reset SPDT Safety Switch, Universal Replacement

Ensure safe and reliable operation of your standing pilot burner systems with the BASO L61LL-1 Pilot Switch. This auto-reset SPDT safety switch is designed to automatically shut off the main burner when the pilot flame goes out, protecting your equipment and enhancing system safety.

The L61LL-1C is a universal replacement for several BASO® models including 860-1, 861-1, 960-1, 961-1, and L61LL-2/-3, making it a versatile and cost-effective solution for HVAC and gas appliance professionals.


🔧 Product Features:

  • Model: L61LL-1

  • Function: Auto Reset SPDT Pilot Safety Switch

  • Universal Replacement for: BASO® 860-1, 861-1, 960-1, 961-1, L61LL-2, and L61LL-3

  • Switch Type: Single Pole, Double Throw (SPDT)

  • Reset Type: Automatic


⚙️ Electrical Ratings:

  • Normally Closed Contact: 125 VA Pilot Duty at 120/240 VAC

  • Normally Open Contact:

    • 8 Amps @ 120 VAC

    • 4 Amps @ 240 VAC

    • 1/4 HP @ 120/240 VAC


🌡️ Operating Conditions:

  • Ambient Temperature Range: -40°F to 150°F (-40°C to 66°C)

  • Agency Approvals: UL Listed, CSA Certified


Applications:

  • Gas Furnaces

  • Boilers

  • Water Heaters

  • Commercial Cooking Equipment

  • HVAC Systems with Standing Pilot Burners


Upgrade your system’s safety with the BASO L61LL-1 Pilot Switch — a trusted solution that meets strict quality standards. Order now for fast shipping, competitive pricing, and excellent customer support!
