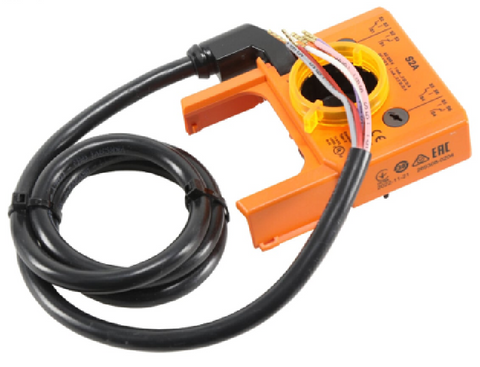

Belimo S2A Auxiliary Switch

The Belimo S2A auxiliary switch is engineered for precise position signaling and versatile switching functions within HVACR systems. This robust add-on unit features a 2x SPDT (Single Pole Double Throw) configuration, providing reliable feedback for damper and rotary actuators. With a switching capacity of 3A (0.5A inductive) at 250 VAC, or 0.5A (0.2A inductive) at 110 VDC, it integrates seamlessly into various control sequences. Installation is straightforward, designed for direct mounting onto the actuator's shaft clamp or position indication, ensuring a secure fit. Technicians can easily adjust the switching points across the actuator's full range of rotation (0-100%) using a simple dial, allowing for fine-tuned application control. Its NEMA 2, IP54 rated housing ensures durability in demanding environments, operating reliably in ambient temperatures from -30°C to 50°C. This damper actuator switch is a maintenance-free solution for critical system monitoring.

• Precise Position Signaling: Offers accurate feedback on actuator position for enhanced system control.
• Versatile Switching: Equipped with 2x SPDT contacts for multiple control sequence applications.
• Adjustable Switching Points: Easily configurable across the entire range of actuator rotation for application flexibility.
• Direct Mounting: Simple and secure attachment to compatible Belimo damper and rotary actuators.
• Durable Construction: NEMA 2, IP54 protection ensures reliability in challenging HVACR environments.

Common Questions

• How do I properly set the adjustable switching points on the Belimo S2A auxiliary switch for my specific application?
• What are the compatibility requirements for integrating the S2A with various rotary actuator auxiliary switch models?
• Can the HVACR position signaling capabilities of this switch be used for both high and low voltage control circuits?

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
