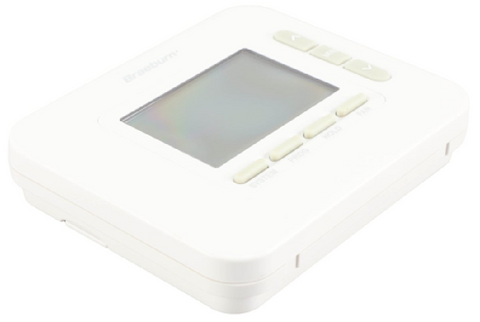

Braeburn Systems 4235 Thermostat

The Braeburn Systems 4235 is a programmable multistage thermostat designed for residential and light commercial HVAC systems. It supports up to 2 heating and 2 cooling stages in conventional systems and up to 3 heating and 2 cooling stages in compatible heat pump applications.

This Braeburn 4235 programmable thermostat provides flexible temperature control with 7-day or 5-2-day programming options, allowing users to customize heating and cooling schedules according to their operating requirements.

The thermostat also features humidity control capabilities and supports battery or hardwired power configurations, providing installation flexibility for compatible HVAC equipment.

For HVAC contractors and service technicians, the Braeburn 4235 multistage thermostat offers a replacement option for systems requiring staged heating and cooling control.

Before installation, verify the existing thermostat wiring, system type, operating voltage, heating and cooling stages, and equipment compatibility.

Key Benefits

• 2 Heat/2 Cool Conventional Control: Supports up to two heating and two cooling stages.

• 3 Heat/2 Cool Heat Pump Control: Compatible with properly configured multistage heat pump systems.

• Programmable Scheduling: Offers 7-day or 5-2-day temperature programming.

• Humidity Control: Supports humidity management in compatible HVAC applications.

• Flexible Power Options: Supports battery or hardwired operation.

• Multistage Temperature Control: Coordinates heating and cooling stages based on system requirements.

• HVAC Replacement Application: Designed for compatible residential and light commercial equipment.

Common Questions

What does 2 heat/2 cool mean on the Braeburn 4235?

It means the thermostat can control up to two heating stages and two cooling stages in compatible conventional HVAC systems.

Can the Braeburn 4235 be used with a heat pump?

Yes. The Braeburn 4235 supports up to three heating stages and two cooling stages in compatible heat pump configurations. Verify the system wiring and equipment requirements before installation.

Is the Braeburn 4235 programmable?

Yes. It offers 7-day or 5-2-day programming options for customized heating and cooling schedules.

Can the Braeburn 4235 replace my existing thermostat?

It may be suitable if the control voltage, wiring connections, system type, and heating and cooling stage requirements match. Always confirm compatibility before purchasing.

Disclaimer

While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

4235 is the cross for VST3900
