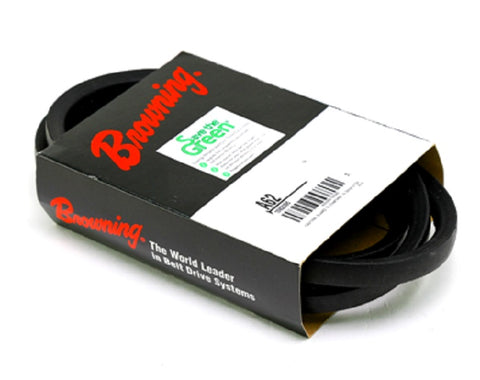

Browning A62 Belt

The Browning A62 is a professional-grade, Classical Super Gripbelt engineered for high-demand HVACR and industrial motor applications. Featuring a 64.2-inch outside diameter and a standard A-section profile, this belt is a direct technical equivalent to part number A-030-6006. Designed for use with 3HP motors and standard A-section sheaves, it utilizes a wrapped construction that allows for smoother, quieter operation and increased tolerance for minor misalignment compared to raw-edge alternatives. The neoprene-impregnated fabric and synthetic fiber tensile cords provide excellent resistance to oil, heat, and elongation, ensuring consistent torque transfer in air handlers, pumps, and fans.

For contractors managing power transmission systems, the Browning A62 Super Grip Belt offers a Code 1 Match system, ensuring that every belt within a specific size exceeds RMA standards for matched set tolerances. This eliminates the need for complex matching codes when replacing belts in multi-groove drives. The 1/2-inch top width and 5/16-inch thickness make it a versatile choice for fractional to moderate horsepower equipment where minimizing vibration and maintaining energy efficiency are critical field requirements.

Key Benefits for HVACR Technicians:

• Universal Compatibility: Fully interchangeable with A-030-6006 and standard Type A industrial pulleys.
• Increased Flexibility: Single-fabric wrapped design permits smaller sheave diameters without compromising belt integrity.
• Environmental Resistance: Neoprene body withstands temperatures up to 140 degrees Fahrenheit and resists chemical degradation.
• High Tensile Strength: Specially treated synthetic cords prevent stretching and frequent re-tensioning during preventative maintenance cycles.
• Quiet Operation: Wrapped fabric cover reduces noise levels in sensitive commercial air handling environments.

Common Questions:

Is the Browning A62 interchangeable with other brands?
Yes, as an A-section classical V-belt, the A62 is compatible with any standard Type A sheave and can replace equivalent 4L or A-series belts from other manufacturers, including the A-030-6006.

What is the difference between this and a raw-edge cogged belt?
The wrapped construction of the Super Gripbelt is better suited for drives that may experience momentary slippage or misalignment, providing a more rugged exterior for harsh industrial startup conditions.

Does this belt require specific matching for multi-belt drives?
No, Browning's Code 1 matching system ensures all A62 belts meet strict tolerance limits, allowing you to pull any belt from stock for a matched set without checking individual batch codes.
