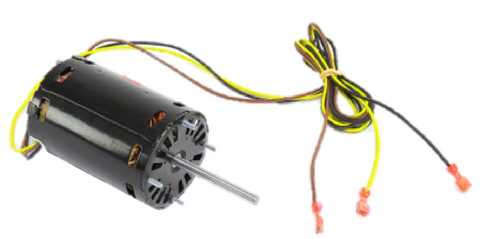

Carrier HC30GL576 Motor

The Carrier HC30GL576 Motor is a high-performance OEM solution engineered specifically for induced draft applications in commercial HVACR systems. Operating at a high speed of 3450 RPM, this 1/16 HP motor provides the necessary static pressure to ensure proper flue gas venting and combustion efficiency. Designed for heavy-duty 575V 60Hz electrical environments, it features a single-phase Permanent Split Capacitor (PSC) design that balances efficiency with the high starting torque required for rapid blower acceleration. The counter-clockwise (CCW) rotation and robust ball-bearing construction make it a direct-fit replacement for maintaining system safety and minimizing emissions in specific Carrier rooftop units and furnace assemblies. With a compact 3.375-inch frame and 5/16 inch shaft diameter, this motor facilitates a streamlined installation process, ensuring technical compatibility for contractors servicing critical climate control infrastructure. Reliable HVAC draft inducer performance is essential for preventing carbon monoxide buildup and ensuring long-term operational stability in demanding commercial settings.

Key Benefits:

• Precision OEM Performance: Designed to meet the exact 3450 RPM and 575V specifications for Carrier commercial equipment.
• Industrial Grade Durability: Equipped with premium ball bearings for reduced friction and extended life in high-heat draft environments.
• Optimized Efficiency: The 1/16 HP motor PSC design offers a stable 0.24 Full Load Amps (FLA), minimizing energy consumption during continuous operation.
• Direct-Fit Replacement: Matches factory bolt patterns and CCW rotation to eliminate the need for field modifications.

Common Questions:

• Is the Carrier HC30GL576 a 3-phase or 1-phase motor? While some technical databases list variations, this specific OEM model is typically utilized as a 1/16 HP single-phase motor in commercial 575V circuits.
• What is the correct rotation for this unit? This motor is designed with Counter-Clockwise (CCW) rotation as viewed from the lead end.
• Can I use a higher HP motor as a substitute? It is critical to use the exact 1/16 HP rating to ensure the fan blade pitch and airflow velocity remain within the design parameters of the inducer assembly.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

HC30GL576 is the cross for 1178177
