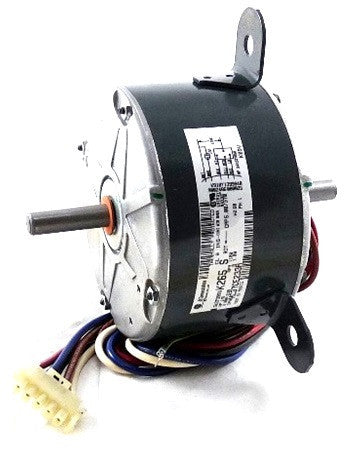

Carrier HC37CE233 Motor

The Carrier HC37CE233 is a high-efficiency OEM replacement motor designed for critical blower applications in Carrier, Bryant, and Payne residential HVAC systems. Engineering specifications include a 1/6 HP output with a 208-230V single-phase power requirement. Operating at a nominal 1100 RPM, this motor provides the static pressure necessary for consistent airflow across the heat exchanger or evaporator coil. This PSC (Permanent Split Capacitor) motor is built with an open air-over (OAO) enclosure to facilitate heat dissipation through the system's airstream, ensuring long-term reliability in demanding cycles.

For a successful field installation, technicians should verify the CCW (Counter-Clockwise) rotation as viewed from the lead end. The Carrier HC37CE233 motor typically requires a 5 MFD / 370V run capacitor (sold separately) to maintain proper torque and amperage draw. Utilizing OEM HVAC parts like the HC37CE233 ensures physical compatibility with existing mounting brackets and terminal connections, reducing the need for field modifications and maintaining the equipment’s original performance ratings.

• OEM Precision: Guaranteed mechanical fit for Carrier blower motor assemblies, eliminating mounting issues.
• Optimized Airflow: The 1100 RPM speed rating maintains factory-specified CFM for system efficiency.
• Technical Reliability: Features high-grade insulation and ball bearing construction for high-cycle environments.
• Simplified Wiring: Color-coded leads integrate directly with standard control boards.

What is the rotation of the HC37CE233?
This motor is configured for CCW lead end rotation. Always verify the rotation of the existing fan wheel before installation to ensure proper airflow direction.

Which capacitor should be used with this Carrier motor?
Standard technical specifications for the 1/6HP 208-230V motor require a 5 MFD run capacitor rated for 370V or higher. Using an undersized or worn capacitor can lead to motor overheating.

Can this motor replace a higher horsepower unit?
No, replacing a larger motor with a 1/6 HP motor will lead to premature failure and insufficient airflow. Always match the horsepower and voltage of the original equipment manufacturer (OEM) part.
