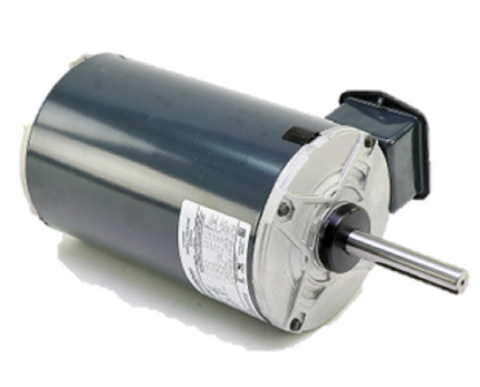

Carrier HD56AK653 Motor

The Carrier HD56AK653 Motor is a high-performance, 3-phase condenser fan motor engineered for demanding commercial and industrial HVAC applications. Operating at a nominal 1140 RPM, this motor provides the high-torque output necessary for maintaining optimal airflow across large condenser coils. It features a versatile 208-230/460V dual-voltage rating and is housed in a 56Y frame, ensuring a precision fit for specific Carrier, Bryant, and Payne replacement motor applications. Built with a Totally Enclosed Air-Over (TEAO) design, the HD56AK653 is protected against environmental contaminants, making it a reliable solution for rooftop units and packaged systems. With 2.4 HP of mechanical power and an amperage range of 3.3-6.6A, this OEM Carrier motor is designed for direct-drive HVAC fan motor configurations where durability and consistent thermal management are critical for system uptime.

• Universal Voltage Compatibility: Supports 208-230V and 460V 3-phase power supplies for flexible field installation.
• Robust 56Y Frame: Specifically designed for Carrier condenser fan motor mounts, ensuring exact shaft alignment and housing fit.
• Thermal Efficiency: Features a TEAO (Totally Enclosed Air-Over) enclosure to prevent dust and moisture ingress while utilizing system airflow for cooling.
• High-Torque Performance: Delivers 2.4 HP at a steady 1140 RPM to handle the static pressure requirements of large-scale commercial condensers.

What is the rotation direction of this motor?
The Carrier HD56AK653 Motor typically supports CW/CCW (electrically reversible) rotation or is factory-set to meet standard condenser fan specifications; always verify lead connections against the wiring diagram on the nameplate.

Can I use this motor in a single-phase application?
No, this is a dedicated 3-phase HVAC motor. Attempting to run this on single-phase power will result in immediate failure and potential damage to the control circuit.

Does this motor include the mounting bracket?
This 56Y frame motor is designed to fit existing cradle or belly band mounts. While it features standard mounting dimensions, the specific bracket is usually reused from the original equipment.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
