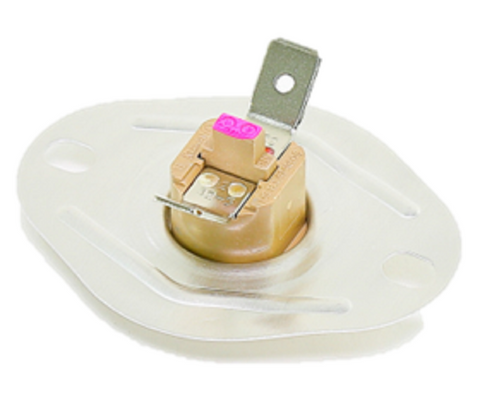

Carrier HH18HA452 Rollout Switch

The Carrier HH18HA452 Rollout Switch is a critical safety component designed for furnace flame rollout protection in high-efficiency gas-fired heating systems. This SPST (Single Pole Single Throw) limit switch is engineered to open the electrical circuit when it detects excessive heat concentrations, indicating a potential draft issue or heat exchanger compromise. Operating with a fixed temperature trip point of 250 degrees F, this manual reset rollout switch requires a technician to physically inspect the burner assembly and heat exchanger integrity before restoring system operation. Built for the rigorous demands of Carrier, Bryant, and Payne HVAC units, the HH18HA452 ensures precise thermal response times to prevent property damage or equipment failure. When performing HVAC safety switch replacement, ensure the mounting flange and terminal orientation match the existing OEM furnace parts specifications for a secure, low-resistance connection.

Key Benefits

• Precision Thermal Calibration: Factory-set to trip at exactly 250°F to ensure immediate system shutdown during flame rollout events.
• Manual Reset Mechanism: Forced manual intervention ensures the root cause of the furnace overheating is addressed by a professional before the unit restarts.
• OEM Compatibility: Specifically engineered for seamless integration with Carrier furnace components, maintaining the original safety certification of the appliance.
• Durable SPST Logic: Features a high-integrity Single Pole Single Throw configuration for reliable circuit interruption under high-limit conditions.

Common Questions

Why does my furnace rollout switch keep tripping?
A tripped HH18HA452 typically indicates a blockage in the flue, a cracked heat exchanger, or improper gas pressure. Because this is a manual reset limit switch, the system will not cycle again until the safety button is depressed and the underlying airflow issue is resolved.

Can I bypass the rollout switch for testing?
Bypassing a furnace safety limit is never recommended. If the HH18HA452 is sensing temperatures above 250°F, it is performing its mechanical duty to prevent HVAC fire hazards. Always use a multimeter to check for continuity across the terminals before assuming the switch is faulty.

What are the technical specs for the HH18HA452?
This OEM Carrier part is rated for 250°F, features an SPST normally closed configuration, and is designed for furnace rollout protection applications across multiple 58-series models.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
