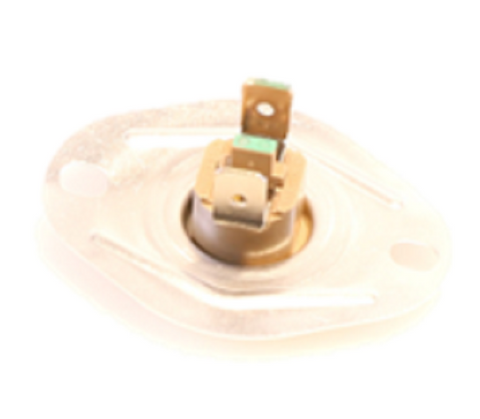

Carrier HH18HA461 Rollout Switch

The Carrier HH18HA461 Rollout Switch is a critical safety component designed for furnace combustion chambers, specifically engineered to detect flame rollout conditions. This fixed temperature limit switch is calibrated to trip at 160 degrees F, providing a reliable thermal cutoff to prevent heat exchanger damage or fire hazards. Featuring a Single Pole Single Throw (SPST) configuration, this device breaks the electrical circuit to the gas valve when temperature thresholds are exceeded. As a manual reset rollout switch, it requires a technician to physically inspect the burner assembly and resolve the underlying venting or pressure issues before the system can be restarted, ensuring HVAC system safety and compliance with OEM specifications.

• OEM Compatibility: Genuine Carrier replacement part ensuring precise fitment in Bryant, Day & Night, and Payne furnace models.
• Manual Reset Mechanism: Prevents automatic cycling of a faulty system, forcing a professional diagnostic of the combustion process.
• High-Precision Calibration: Rated for 160°F (71°C) to provide an immediate response to abnormal heat patterns.
• Durable Construction: Built to withstand the harsh thermal environment of a furnace burner box without premature fatigue.

What causes a 160 degree rollout switch to trip?
A tripped furnace rollout switch usually indicates restricted flue venting, a cracked heat exchanger, or improper manifold gas pressure causing the flame to "roll out" of the burner. Always check for obstructions in the chimney or secondary heat exchanger before resetting.

Can I bypass this switch for testing?
No. In professional HVAC applications, bypassing a safety limit is a code violation and poses a significant safety risk. If the HH18HA461 continues to trip, the combustion airflow must be analyzed using a combustion analyzer.

Is this switch compatible with other furnace brands?
While the SPST rollout switch logic is common, the mounting bracket and 160F temperature rating are specific to the Carrier HH18HA461. Verify the part number against the factory service manual to ensure the correct trip point for your specific BTU input.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
