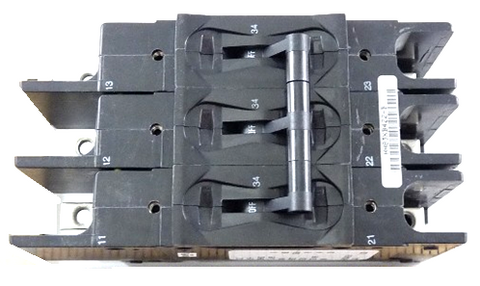

Carrier HH83XB422 Circuit Breaker

When you're out in the field and an air handler or rooftop unit is dead in the water, the Carrier HH83XB422 is the OEM-spec molded case circuit breaker you need to restore power distribution safely. This HH83XB422 hydraulic-magnetic breaker is a specialized three-pole protection device designed to handle 600VAC applications with a 34A or 40A rating, depending on your specific equipment's nameplate requirements. Unlike standard thermal breakers that can be sensitive to ambient temperature in a hot mechanical room, the Carrier 3-pole circuit breaker utilizes a precise dashpot mechanism to ensure a consistent trip point, preventing nuisance trips while providing robust protection against electrical overloads and short circuits.

For contractors and facilities technicians, this breaker is a critical HVAC replacement part used in commercial chillers, large-tonnage Carrier RTUs, and industrial motors. Its compact footprint—roughly 6 inches in width—allows it to fit into standard control cabinets without major rewiring. When you are troubleshooting a tripped AC circuit breaker in a high-voltage system, swapping in a genuine HH83XB422 ensures your short circuit protection meets the original equipment manufacturer's engineering standards, maintaining the integrity of the 600V electrical system and protecting expensive downstream compressors and fans from phase-related faults.

• Hydraulic-magnetic trip mechanism providing consistent performance regardless of ambient temperature fluctuations.
• Three-pole 600VAC design specifically engineered for three-phase commercial HVACR power distribution.
• Molded case construction offers high dielectric strength and durability in demanding mechanical environments.
• OEM compatibility ensures the Carrier HH83XB422 fits directly into existing mounting points for faster service calls.
• High interrupting capacity to safely isolate faults and prevent damage to motors, generators, and transformers.

What is the primary cause of a tripped HH83XB422 breaker?
In most HVAC applications, this breaker trips due to a grounded compressor winding, a seized fan motor, or a major voltage spike. Always megger the motor and check for a short to ground before resetting or replacing the breaker to avoid further component damage.

Can I use this breaker in an outdoor enclosure?
The breaker itself is designed for indoor mounting or within a NEMA-rated weather-tight control cabinet. If the unit is exposed to the elements, ensure the enclosure's seals are intact to prevent moisture from Corroding the terminations.

Why choose a hydraulic-magnetic breaker over a standard thermal-magnetic type?
Hydraulic-magnetic breakers like the Carrier HH83XB422 are preferred in HVACR because they do not "derate" in hot environments. They trip based on actual current draw rather than heat, which is essential for rooftop equipment exposed to high summer temperatures.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
