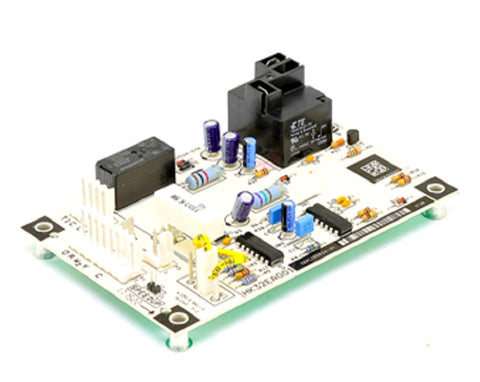

Carrier HK32EA001 Defrost Timer Board

The Carrier HK32EA001 Defrost Timer Board is a critical electronic control module engineered for precise heat pump defrost cycle management in Carrier, Bryant, and Payne systems. As a veteran-grade OEM defrost control board, it utilizes time-temperature logic to monitor the outdoor coil, preventing efficiency-robbing frost accumulation. This board features selectable defrost intervals of 30, 60, or 90 minutes, allowing technicians to optimize performance based on local climate conditions. By integrating an HK32EA001 replacement, you ensure the system accurately triggers the reversing valve and manages the outdoor fan motor to maintain high SEER ratings during heating operations. This HVAC control board interfaces directly with the defrost sensor (DFT) and 24V contactor circuit, providing a reliable field solution for units that are failing to initiate defrost or experiencing excessive ice build-up. Its robust circuitry is built for the high-demand environments of residential and light commercial heat pumps.

• Factory Authorized Part: Specifically calibrated to meet OEM Carrier heat pump specifications for seamless integration.
• Selectable Timing: Field-adjustable jumpers allow for 30, 60, or 90-minute run-time intervals for customized defrost frequency.
• Cross-Brand Compatibility: Direct replacement for Bryant and Payne units, streamlining inventory for service trucks.
• Diagnostic Reliability: Simplifies troubleshooting of heat pump ice buildup issues by isolating control logic from sensor failure.
• System Efficiency: Minimizes unnecessary defrost cycles, reducing wear on the compressor and reversing valve.

How do I test the board in the field?
Technicians can use the speed-up pins on the HK32EA001 board to force a defrost cycle for testing. Shorting these pins bypasses the integrated timer to confirm the reversing valve and outdoor fan relay are functioning correctly.

What are the signs of a failing defrost timer?
Common indicators include the outdoor coil completely "icing over," the unit staying in defrost too long, or the compressor running without the outdoor fan when the coil is clear of frost.

Can this board replace an HK32EA007?
Yes, it is often used as a replacement, but always verify the specific defrost selection timing settings to match the original unit's sequence of operation.
