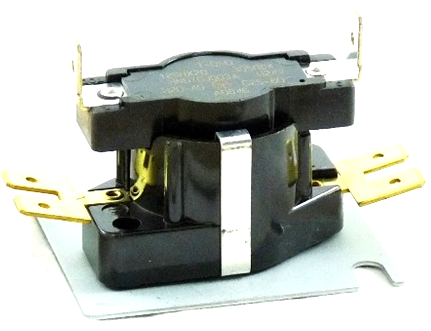

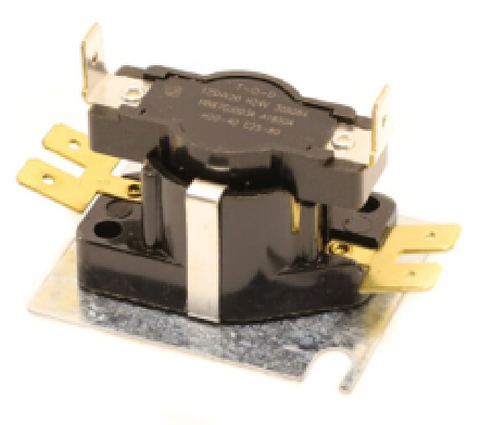

Carrier HN67GJ003 Relay

The Carrier HN67GJ003 Time Delay Relay is a critical OEM replacement part designed for precision circuit management in high-efficiency residential and commercial HVAC units. Engineered to control the sequencing of electrical loads, this HVAC time delay relay prevents harmful short-cycling of the compressor, mitigating mechanical stress and ensuring stable operation during transient power events. As a direct Carrier relay replacement, it is fully compatible with Bryant and Payne equipment, providing a seamless fit for technicians performing field repairs on furnace control boards or air handler sequencing circuits. Its compact design facilitates easy integration into existing control cabinets while maintaining the high-voltage isolation standards required for 24V or line-voltage configurations. By regulating the activation and deactivation of blowers and compressors, the HN67GJ003 optimizes system cycles and enhances overall energy thermal efficiency.

• Protects Critical Components: Effectively prevents compressor short-cycling and premature wear on high-cost motors.
• OEM Compatibility: Precision-manufactured to match the exact specifications found in Carrier, Bryant, and Payne systems.
• Reliable Sequencing: Maintains consistent timing for fan-on and fan-off delays to maximize heat transfer across coils.
• Plug-and-Play Installation: Compact footprint with standard spade terminals for rapid field replacement by contractors.

What does the Carrier HN67GJ003 time delay relay do?
It manages the timing of the fan or compressor to prevent simultaneous startup of high-draw components and protects against short cycles.

Is the HN67GJ003 compatible with Bryant or Payne units?
Yes, as an OEM Carrier part, it is the standard replacement for equivalent part numbers in both Bryant and Payne HVAC systems.

How can I tell if my relay is failing?
Common symptoms include the blower motor failing to shut off, the compressor not engaging on a call for cooling, or erratic short-cycling of the outdoor unit.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
