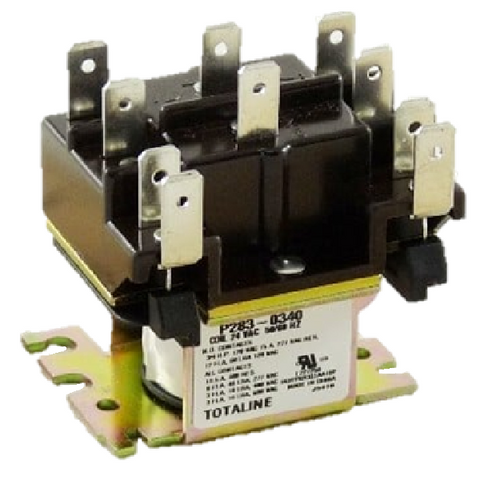

Carrier P283-0340 Fan Relay

The Carrier P283-0340 Fan Relay is a heavy-duty, 2-pole HVAC relay engineered for precise switching of blower motors and fan circuits in residential and commercial equipment. This genuine OEM component features a 24V control coil, providing the dependable pull-in and drop-out performance required to maintain proper airflow and system sequencing. Designed specifically for Carrier HVAC systems, it serves as a direct technical cross-reference for part numbers F87110340 and 1056363. For technicians, this relay eliminates common troubleshooting issues related to sticking contacts or coil failure, ensuring that internal switching aligns with manufacturer specs for circuit protection and efficiency.

Technical Specifications & Key Benefits

• 2-Pole Switching: Provides robust control for dual-line or multi-speed fan configurations.
• 24V Coil Voltage: Seamlessly integrates with standard low-voltage control transformers.
• OEM Compatibility: Exact replacement for Carrier P283-0340, F87110340, and 1056363.
• Industrial Build: Rated for high-cycle operation in demanding heating and cooling environments.
• Airflow Optimization: Ensures consistent fan activation for peak heat exchange efficiency.

Common Questions & Answers

What is the difference between a 1-pole and 2-pole relay in HVAC?
A 2-pole relay like the P283-0340 can switch two independent circuits or both legs of a 240V circuit simultaneously, whereas a 1-pole relay only switches a single line.

Can I use the P283-0340 if my old relay is an F87110340?
Yes. This unit is the official Carrier OEM replacement for the F87110340 and 1056363, ensuring the pin mapping and electrical ratings match exactly.

Why is my blower motor not turning on even with 24V at the thermostat?
If the 24-volt control coil receives power but the contacts fail to close, the internal switching mechanism may be compromised. Replacing the relay is the standard technical resolution.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
