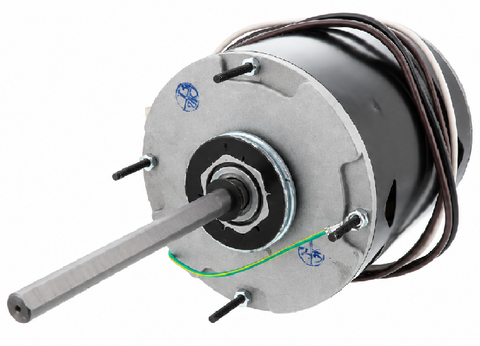

Century Motors 158A Motor
The Regal Rexnord Century Motors 158A is a 3/4 HP condenser fan motor designed for compatible HVAC condensing units and air-moving equipment. This 460V single-phase condenser fan motor operates at 1075 RPM with a single-speed configuration and a rated current of 2.1 amps. Its permanent split capacitor (PSC) design is intended for applications requiring dependable fan operation with the correct external run capacitor.
The Century 158A condenser fan motor features a 48Y frame, semi-enclosed air-over construction, and ball bearings. A 1/2-inch diameter shaft, reversible rotation, and resilient ring/extended stud mounting provide installation flexibility where equipment specifications permit.
When selecting this 3/4 HP HVAC condenser motor as a replacement, verify the original motor's voltage, phase, horsepower, speed, full-load amperage, shaft dimensions, mounting arrangement, capacitor requirements, and rotation. This 1075 RPM PSC fan motor should only be installed where its electrical and mechanical ratings match the equipment requirements.
Key Benefits
-
3/4 HP Output: Designed for compatible condenser fan applications.
-
460V Single-Phase Operation: Rated for 460 VAC, single-phase electrical service.
-
1075 RPM: Single-speed motor configuration.
-
2.1 Amp Rating: Supports electrical compatibility verification.
-
48Y Frame: Identifies the motor's frame configuration.
-
PSC Design: Permanent split capacitor motor construction.
-
Ball Bearings: Ball-bearing motor design.
-
Reversible Rotation: Allows rotation configuration for compatible equipment.
-
Mounting: Resilient rings and extended studs.
-
Shaft: 1/2-inch diameter.
-
Semi-Enclosed Air-Over Design: Intended for applications with appropriate airflow across the motor.
Common Questions
What equipment is the Century 158A motor used for?
The Century 158A is designed for compatible HVAC condenser fan and air-moving applications. Confirm the equipment's motor specifications before selecting a replacement.
Can the Century 158A replace another 3/4 HP condenser fan motor?
Not based on horsepower alone. Voltage, phase, RPM, amperage, frame, shaft dimensions, mounting configuration, capacitor requirements, and rotation must also be compatible.
What capacitor does the Century 158A require?
The Century 158A uses a permanent split capacitor motor design. Verify the required capacitor capacitance (µF) and voltage rating against the manufacturer's motor documentation or nameplate before installation.
Disclaimer
While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
158A is the cross for FH1076
