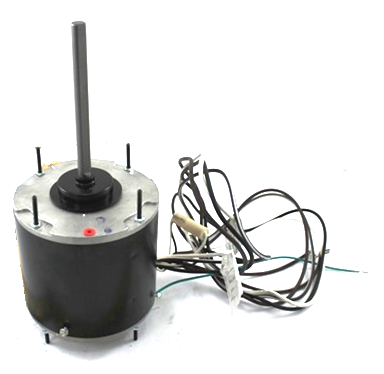

Century Motors FEH1036SF Motor
The Century Motors FEH1036SF is a professional-grade 1/3 HP condenser fan motor engineered for high-demand outdoor HVACR applications. Operating at 460V with a single-phase 60Hz supply, this PSC motor (Permanent Split Capacitor) delivers a consistent 1075 RPM. Built with a NEMA 48 frame and a TEAO (Totally Enclosed Air Over) design, it provides superior protection against environmental contaminants in rooftop units and commercial condensers. The unit features ball bearings for all-angle mounting and a 70°C ambient temperature rating, ensuring reliable performance during peak thermal loads. A 1/2" x 6.5" shaft with double flats and 48-inch leads allows for straightforward installation across various mounting configurations, including belly band and extended thru-bolts.
Key Benefits
- High-Temperature Reliability: Rated for 70°C (158°F) ambient conditions, making it ideal for standard and high-heat refrigeration motor duty.
- Versatile Mounting: Featuring extended thru-bolts and compatibility with belly band mounts, this motor fits 48 frame residential and commercial condenser units.
- Reversible Rotation: Integrated CW/CCW rotation via a simple reversing plug simplifies service calls by replacing multiple OEM-specific models.
- Durable Construction: Equipped with double-sealed ball bearings and Class F insulation to withstand continuous duty cycles in harsh outdoor environments.
- Electrical Protection: Includes automatic thermal overload protection to safeguard the windings against overheating and voltage fluctuations.
Common Questions
What capacitor is required for the FEH1036SF?
This motor requires a 7.5 MFD / 370V run capacitor for proper PSC motor operation and startup torque.
Can this motor replace a 230V unit?
No, the FEH1036SF is strictly a 460V HVAC motor. Wiring this to a 208-230V source will result in failure and potential equipment damage. Is this motor suitable for shaft-up or shaft-down positioning?
Yes, the ball bearing design and TEAO enclosure allow for all-angle mounting, providing flexibility for different fan blade orientations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
FEH1036SF is the cross of 789A
