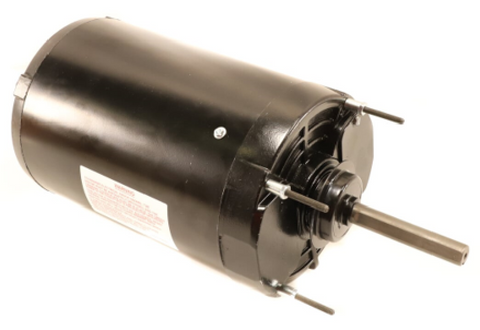

Century Motors FY3106 Motor

The Regal Rexnord Century FY3106 Condenser Fan Motor is a 1 HP, three-phase HVAC/R motor designed for condenser fan applications requiring continuous air-over operation. Rated for 200-230/460 VAC, the FY3106 operates at 1140 RPM and draws 5.7/2.9 amps.

Its 56Y NEMA frame and Totally Enclosed Air Over (TEAO) construction are designed for demanding condenser applications where airflow across the motor provides operating cooling. The motor uses ball bearings and a 5/8-inch keyed shaft with approximately a 4-inch shaft extension.

The FY3106 features reversible rotation, allowing proper configuration for compatible condenser fan applications. For replacement installations, verify the original motor's horsepower, voltage, phase, RPM, frame size, shaft dimensions, mounting arrangement, rotation, and equipment requirements before ordering.

Key Benefits

• Manufacturer: Regal Rexnord / Century Motors
• Part Number: FY3106
• Product Type: Condenser Fan Motor
• Horsepower: 1 HP
• Voltage: 200-230/460 VAC
• Phase: Three Phase
• Speed: 1140 RPM
• Current: 5.7/2.9 Amps
• NEMA Frame: 56Y
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft: 5/8" diameter × approximately 4" extension
• Rotation: Reversible
• Bearing Type: Ball Bearing
• Designed for HVAC/R condenser fan applications

Common Questions

What is the Century FY3106 used for?
The FY3106 is designed primarily for HVAC/R condenser fan applications requiring a 1 HP, three-phase, 1140 RPM motor.

Is the FY3106 a 200-230/460V motor?
Yes. The motor is designed for 200-230/460 VAC, three-phase electrical service.

Can the FY3106 motor rotation be reversed?
Yes. The FY3106 features reversible rotation for compatible applications.

Is the FY3106 a 56Y frame motor?
Yes. It uses a 56Y NEMA frame and a 5/8-inch shaft.

How do I confirm this motor will fit my equipment?
Compare the original motor's part number, horsepower, voltage, phase, RPM, frame, shaft dimensions, mounting configuration, rotation, and application. When possible, verify compatibility using the equipment model and serial number before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
