Copeland 529-0060-05 Power Cable

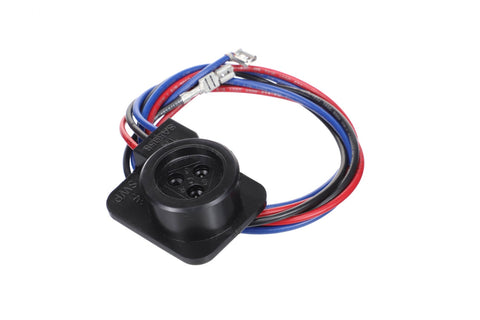

The Copeland 529-0060-05 Power Cable with Molded Plug is the OEM compressor power lead for Copeland ZR and CR scroll compressors. It has a black molded plug with three terminal sockets that seats onto the compressor’s terminal block, and red, black, and blue insulated leads that carry line power to the motor, with spade-style terminals on the leads.

When a molded plug gets overheated from a loose connection, the plastic browns, cracks, or melts, and you see burned sockets, arcing, or a compressor that loses a leg and trips or will not start. Replacing the whole power cable is the right repair, because a scorched plug or brittle lead insulation will keep failing. Fit the 529-0060-05 to the compressor by seating the plug fully and routing the leads away from hot discharge tubing. The 529-0060-04 and 529-0060-24 plug and cable assemblies are separate current part numbers, so match the plug style and lead configuration to the one you are replacing.

Key Benefits

• OEM Plug and Leads: A factory molded plug with color-coded leads, ready to install.
• Cures Burned-Plug Failures: Replaces a heat-damaged plug or brittle insulation that causes arcing or lost phases.
• Built for ZR and CR Scrolls: Made for Copeland ZR and CR scroll compressors.
• Clean Connection: The three-socket molded plug keeps the terminals insulated and properly spaced.

Common Questions

• Which compressors use this cable? The 529-0060-05 is a power cable with molded plug for Copeland ZR and CR scroll compressors.
• Is this the same as 529-0060-04 or 529-0060-24? No. Those are separate part numbers. Match the plug style, lead colors, and terminals to the cable you are removing.
• Why replace the whole cable? A melted or discolored plug or brittle leads will keep overheating. Replace the complete power cable and check the compressor terminal block as well.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
