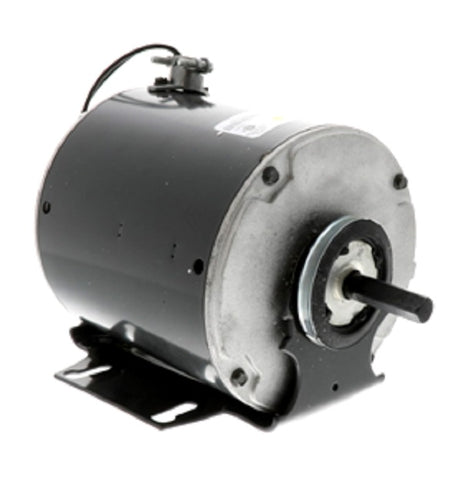

Copeland 950-0108-00 Motor

The Copeland 950-0108-00 is an industrial-grade condenser fan motor designed for high-demand HVACR applications. This 1/3 HP motor operates on a reliable 208/230V single-phase power supply, delivering a consistent 1625 RPM to ensure optimal airflow across condenser coils. Built with a 48Y frame and a 1/2-inch diameter shaft, it serves as a robust HVAC replacement motor for technicians requiring tight tolerances and long-term performance in outdoor condensing units. The TEFC (Totally Enclosed Fan Cooled) design protects internal components from environmental contaminants, while the high-speed 1625 RPM rating is specifically calibrated for efficient heat rejection in commercial refrigeration and air conditioning systems.

• Optimized Performance: Delivers 1/3 HP at 1625 RPM for superior heat rejection and system efficiency.
• Durable Enclosure: Features a TEFC design to resist moisture and debris in demanding outdoor environments.
• Precision Engineering: Standard 48Y frame and a 1/2" shaft ensure a drop-in OEM motor replacement for specified Copeland units.
• Versatile Application: Rated for 208-230V operation, making it compatible with a wide range of single-phase residential and commercial systems.

Is this motor reversible?
This specific model is typically CCW (Counter-Clockwise) rotation from the lead end. Always verify the rotation requirements of your fan blade before installation.

What capacitor is required for the 950-0108-00?
As a Permanent Split Capacitor (PSC) motor, it requires a run capacitor (typically 5 MFD or 7.5 MFD at 370V/440V depending on the specific revision). Check the motor nameplate for exact microfarad requirements.

Can I use this to replace a 1075 RPM motor?
No, replacing a lower RPM motor with a 1625 RPM motor will significantly increase the amperage draw and may lead to motor failure or improper system pressures. Matches should always be based on RPM, HP, and Frame size.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
