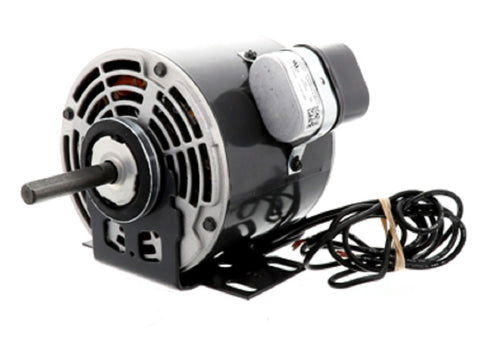

Copeland 950-0250-01 Motor

The Copeland 950-0250-01 is a high-performance 460V single-phase condenser fan motor engineered for heavy-duty commercial refrigeration and HVAC applications. Delivering 1/4 HP at a steady 1625 RPM, this OEM replacement motor ensures optimal thermal management and airflow stability for condensing units. Designed to meet the precise electrical requirements of Copeland systems, this motor features a 48-frame diameter and robust insulation to withstand high ambient temperatures common in rooftop installations. When replacing a failed motor, verify that your capacitor rating matches the nameplate requirements to ensure proper torque and motor longevity. Contractors prioritize the 950-0250-01 motor for its drop-in compatibility and reliability in high-static pressure environments. Its efficient electrical design minimizes amperage draw under load, reducing stress on the overall system and preventing premature cycling issues in critical cooling cycles.

• Direct OEM Fit: Drop-in replacement for Copeland condensing units, eliminating the need for bracket modifications or shaft adjustments.
• High-Speed Efficiency: Rated at 1625 RPM to maintain the necessary CFM across condenser coils for efficient heat rejection.
• Industrial Build: Engineered for 460V 1Ph electrical architectures, suitable for demanding commercial power grids.
• Optimized Performance: Balanced rotor and high-grade bearings reduce vibration and noise during operation.

Common Technical Questions

Is the 950-0250-01 a reversible motor?
This motor is typically factory-set for a specific rotation; always verify the airflow direction against the original fan blade pitch before finalizing the installation.

What capacitor does the Copeland 950-0250-01 require?
This motor requires a specific microfarad (MFD) run capacitor. Always check the motor nameplate and replace the capacitor when installing a new motor to prevent winding failure.

Can this motor be used in 230V applications?
No, this is a dedicated 460V motor. Applying lower voltage will result in high amperage, overheating, and immediate component failure.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

950-0250-01 is the cross for K55HXJZK-3127
